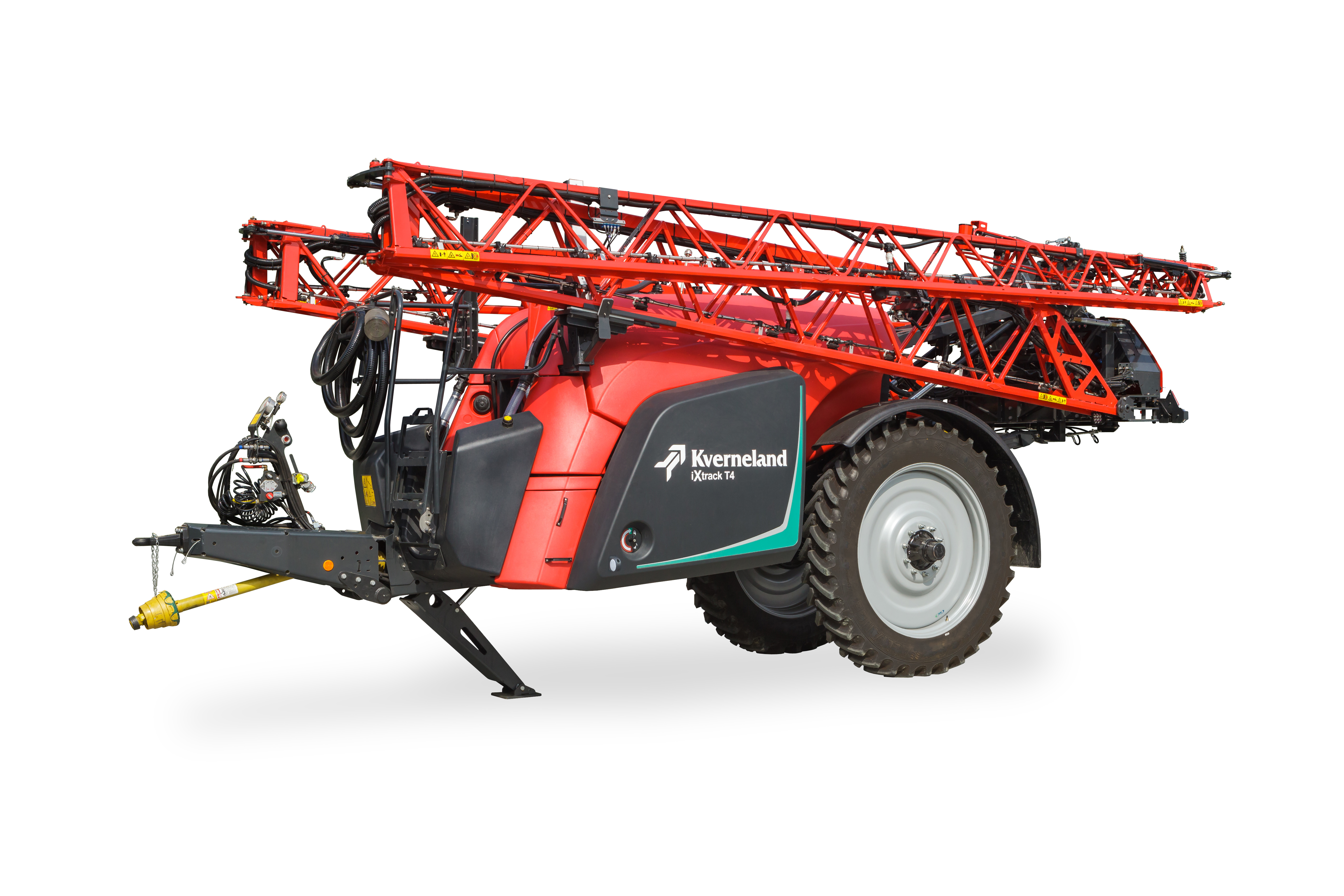

Kverneland iXtrack T4

DAT-kameratekniken på Kvernelands sprutor är ett precisionsverktyg som hjälper lantbrukare och entreprenörer att utföra punkt-besprutning och därmed minska mängden sprutvätska.

DAT Ecopatch känner igen och kategoriserar ogräs i fält med vete, spannmål och raps. När ogräset identifieras av kameran skickas en signal till Kvernelands fältspruta och lämpliga munstycken aktiveras, upp till en hastighet av 10 km/tim.

Systemet bygger på pragmatism och förlitar sig på den agronomiska principen att ogräs växer i fläckar, vilket innebär en kostnadseffektiv lösning.

Att använda DAT Ecopatch på en Kverneland-spruta är enkelt. Aktivera bara systemet genom att klicka på en knapp på IsoMatch Tellus PRO eller GO+ eller någon annan AEF-certifierad terminal och kombinationen är redo att gå. Ogräset kommer automatiskt att identifieras och munstyckena slås på och av.

Data, som t.ex. applicerade data och värmekartor över ogräset, blir direkt tillgängliga och kan användas direkt i kombination med t.ex. IsoMatch FarmCentre för vidare analys.

Med DAT-kameratekniken på en Kverneland-spruta kan besparingar på sprutvätska på upp till 58%* uppnås. Dessutom kommer de icke-sprayade områdena att bevara friska grödor från onödig behandling, vilket innebär mindre skador på grödan och en annan fördel är den ökade kapaciteten, eftersom fler hektar eller fält kan täckas med en tank med sprutvätska.

Fråga idag vad DAT-systemet kan göra för dig.

*2024 DAT-försök i raps

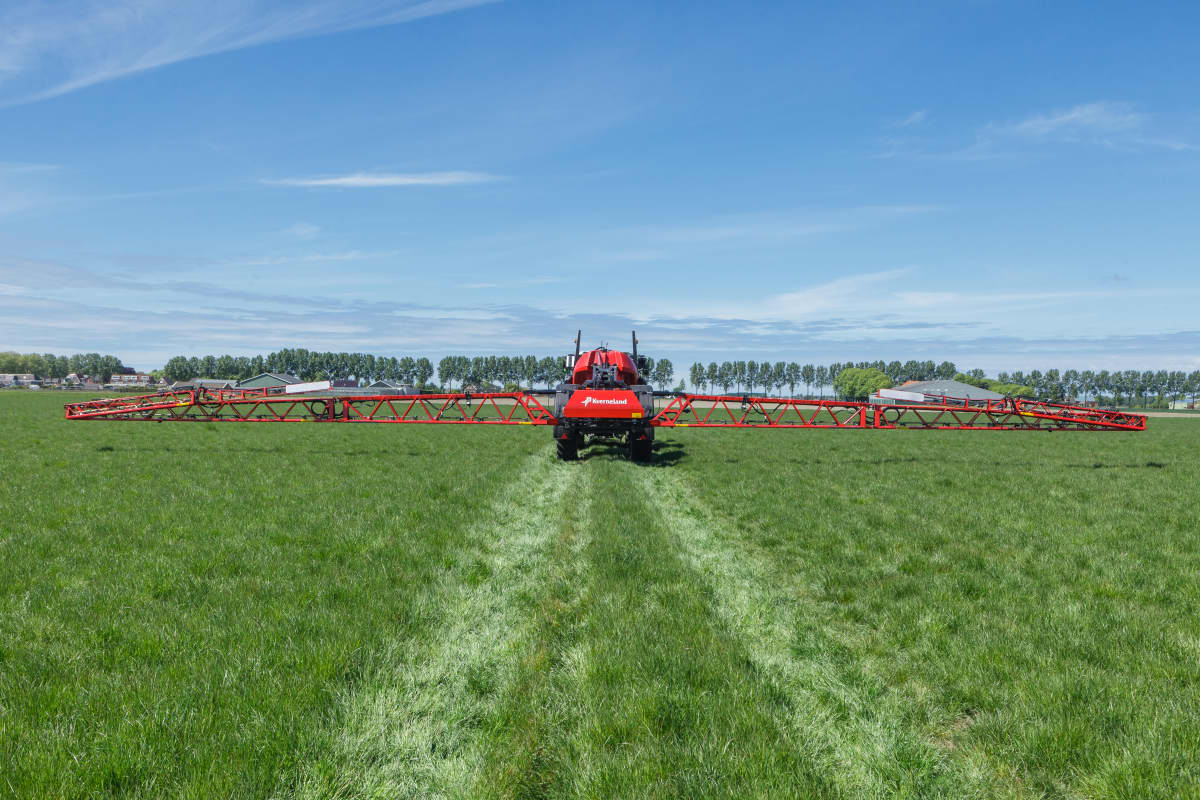

The HSS spray boom combines a minimum of weight with maximum strength and stability. Special hardened Domex steel gives the spray boom a long lasting heavy duty high quality reputation. The aluminium bonding instead of welding of the HSA spray boom range provides a weight saving and gives remarkable strength.

HSS Spray Boom
The HSS spray boom is designed for professional use. The triangular construction provides perfect integration of the stainless steel spray lines, nozzles and nozzle holders and the optimal hose routing where all is well protected. Working widths from 18 up to 40 metres with a variation in different section lengths offer the sprayer adapted to customer demands!

HSA Spray Boom
The HSA spray boom offers efficient protection of the nozzle holders within the bottom profile. This profile is designed for easy cleaning and much more. With no sharp angles, no liquid and residues can be trapped. The anodised surface protects against corrosion and scratches.

Compact and Stable

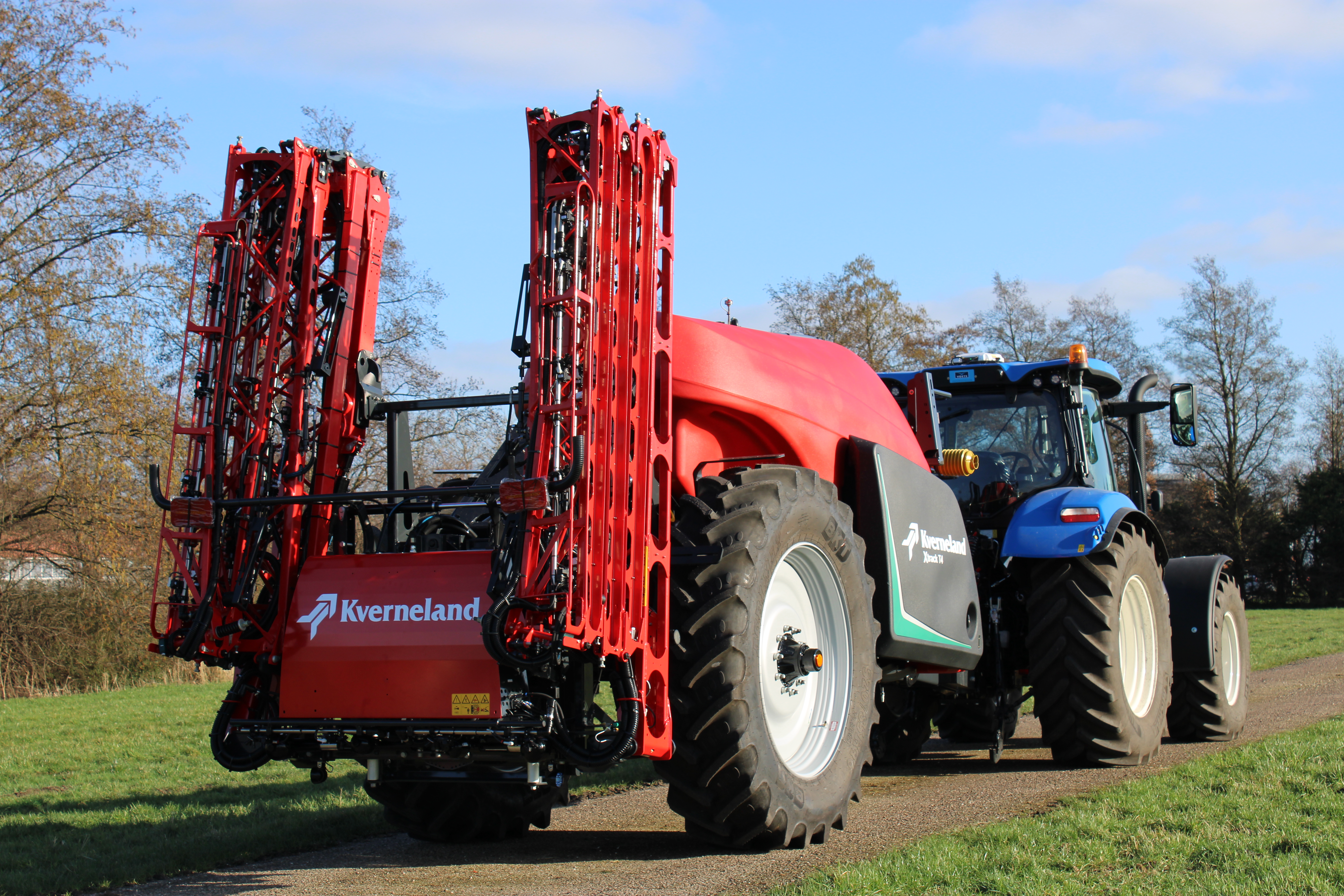

In transport position the HSA and HSS spray boom fold away nicely over the patented tank design and far away from the tractor cab. This results in a transport width of 2.55m and a height below 4m that together with the low gravity point provides excellent stability on the road, as well in the field.

The iXtrack T series are 100% ISOBUS compatible as standard, which means easy plug and play with the IsoMatch Tellus GO+ or PRO or any other AEF certified terminal. The innovative iXspray hardware and software with intuitive touch interface guarantees an user friendly operation of the sprayer. iXspray is full of nice features to make the operators life easy, save time and avoid mistakes in a busy working season, for example pre-sets for spray jobs and boom configuration can be configured easily.

IsoMatch Grip
The IsoMatch Grip adds control to your fingertips for easy control of the sprayer. From 1 up to 44 functions over 4 modes can be programmed freely by the operator. So you can start with basic functionalities and add other functionalities later on demand. Due to the ISOBUS AUX-N functionality the IsoMatch Grip can also be used to control other implements.

IsoMatch GEOCONTROL
The combination of IsoMatch GEOCONTROL and GPS allows the operator to reduce overlap and over dosing, to increase crop quality and save costs. All this in combination with even high flow rates, because there is no impact on the section length, no loss of pressure or an unequal flow between sections. IsoMatch GEOCONTROL application fulfils the need in terms of easy, smart and efficient farming, by providing the use of automatic section control and variable rate applications.

Boom Guide
Boom guide is an automatic boom height control system that helps the operator to maintain your chosen spraying height. Ultrasonic sensors control the sprayer's hydraulics to guide the boom.

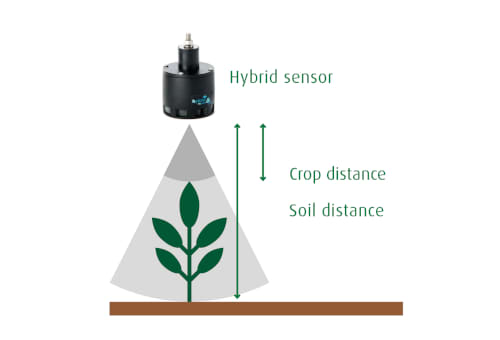

Sensors with Hybrid Mode as standard
This unique sensor technology, provides excellent guidance in many different and challenging field conditions and crops. The hybrid mode not only measures the distance to the plant (upper growth), it also measures the distance to the ground or bottom parts of growth at the same time. There are three different modes:

• Soil mode: the sensors only see the bottom. The soil remains representative.
• Crop mode: the sensors only see the crop. In a closed crop the sensors continue to automatically follow the crop (top).
• Hybrid mode: the sensors see the crop and the soil. The sensors follow the soil surface and the crop. When the crop is uneven, a uniform crop is virtually determined. Used in unclosed or uneven crops.

The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.

Boom Guide ComfortActive
The two ultrasonic sensors, with integrated roll sensors on the boom, can control the spray height via the central slope correction and boom lift functions. A proportional hydraulic valve is steering the central, hydraulic slope correction cylinder. The cost-effective system is suited to gentle slopes, uneven crop conditions and lower driving speeds.

Boom Guide Pro
This advanced system uses three ultrasonic sensors to control left- an right-hand boom sections independently for the ultimatic guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every situation!

Boom Guide ProActive
The system proactively reacts on boom movement and controls both the central and independent slope correction, as well as boom lift functions to guide the boom over the crop canopy, soil surface or a combination of both modes.

Boom Guide 5 Sensor Extension
The Boom Guide 5 sensor extension provides two additional ultrasonic sensors to ensure proper height measurements with booms reduced to 24 metres.

Balancing in Flatland Conditions
An especially designed balancing system for flatland conditions is available for HSS spray booms from 32-40 metres. This system does not require any electronic boom guidance in flatland areas. The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.

Storage Locker
A storage locker is integrated on the left hand side behind the door allowing you to keep your safety and cleaning equipment or tools with you on the sprayer. An additional storage locker is available for the right hand side to create even more storage place.

Easy Accessible Filters
The transparant filter bowl provides direct view on the dirt degree of the suction filter without dismounting. A valve at the bottom allows emptying the filter content before removing the bowl to avoid contamination of the hands with chemicals. The self cleaning pressure filter prevents blocking via a continuous flow keeping the filter mesh clean. The undissolved particles are returned into the tank until they are completely dispersed.

Chemical Inductor
The chemical inductor is an integrated part of the tank design. It is located next to the valve panel for easy access. Equipped with a circular rinsing system and waterproof cover, it can be rinsed safely with closed cover. Big quantities of powder and difficult mixtures are injected without any problems within seconds!

Clean Water Tank
The clean water tank is equipped with a level indicator. It can be filled via the opening on the clean water tank. It contains sufficient clean water for thorough cleaning with the several iXclean functions.

Filling via the Suction hose
External aspirate water is filtered first by the filter on the hose and then by the suction filter. In parallel you can already use the chemical inductor to add and premix chemicals.

Hand Wash Tap
You can wash your hands via the hand wash tap which is centrally located on the valve panel.

External Washing
A cleaning kit with a 15 metre hose and a brush, can be connected to the pressure side of the pump. It is allowing precleaning of the sprayer in the field, using water from the clean water tank.

Dual Agitation System
The return flow agitation system keeps the mixture homogeneous during operation and can be easily switched off in case of foam risk or nearly empty tank. The powerful high pressure agitation with injector nozzles guarantees powerful mixing which can activate after filling or a long break.

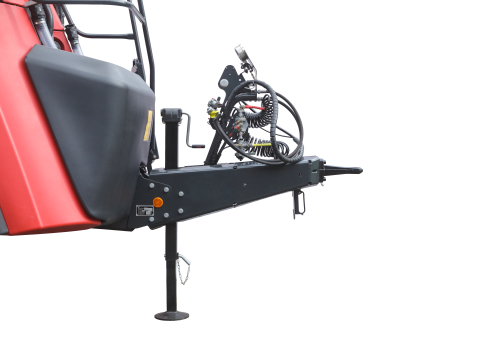

Easy hitching
The drawbar for the iXtrack T3 and T4 is easy to change from top to low linkage or the other way around, depending on the linkage point of the tractor.

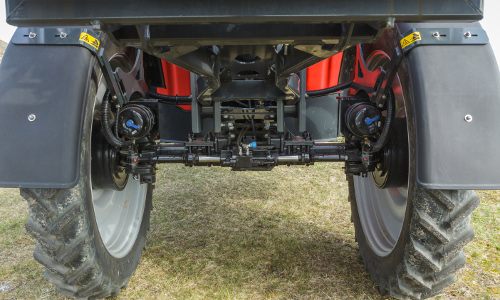

Maximum Steering Possibilities
The iXtrack T series offers maximum user friendliness and comfort by having a steering axle which contributes to excellent stability in different field conditions. The track width can be changed from 1.50m to 2.25 metres (1.80m to 2.25m in combination with 5300l tank capacity on iXtrack T4). This ensures maximum steering possibilities with a tight turning radius.

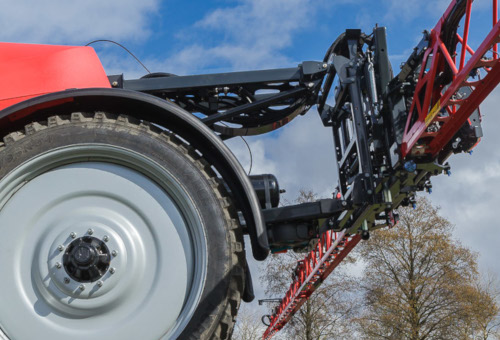

Smooth and Suspended
The iXtrack T series is equipped with a smooth, suspended parallogram that is active when in the field and in transport. The parallelogram combines optimal stability with soft boom balancing and limited vertical movement to minimise spray height deviations, securing correct crop coverage.

ErgoDrive Headland Management System
ErgoDrive headland management is standard equipment for the iXtrack T series. ErgoDrive assists the operator on the headland turns. It is activated by simply switching ON or OFF and ErgoDrive controls all the necessary actions, while the operator can focus on driving safely.

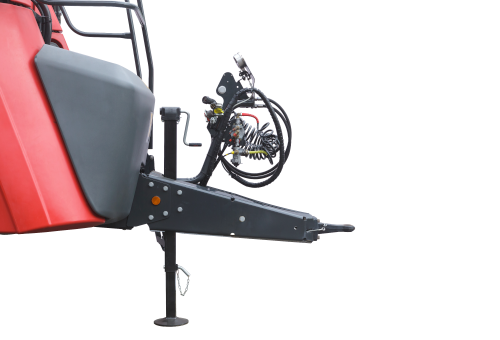

Easy hitching
The drawbar for the iXtrack T3 and T4 is easy to change from top to low linkage or the other way around, depending on the linkage point of the tractor.

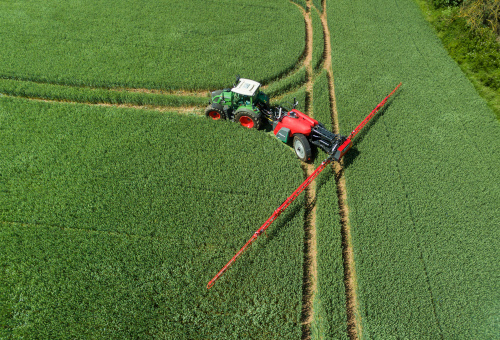

Maximum Steering Possibilities
The iXtrack T series offers maximum user friendliness and comfort by having a steering axle which contributes to excellent stability in different field conditions. The track width can be changed from 1.50m to 2.25 metres (1.80m to 2.25m in combination with 5300l tank capacity on iXtrack T4). This ensures maximum steering possibilities with a tight turning radius.

Smooth and Suspended
The iXtrack T series is equipped with a smooth, suspended parallogram that is active when in the field and in transport. The parallelogram combines optimal stability with soft boom balancing and limited vertical movement to minimise spray height deviations, securing correct crop coverage.

ErgoDrive Headland Management System
ErgoDrive headland management is standard equipment for the iXtrack T series. ErgoDrive assists the operator on the headland turns. It is activated by simply switching ON or OFF and ErgoDrive controls all the necessary actions, while the operator can focus on driving safely.

Svängradie
Den enda centrala ramen, i kombination med de specialformade parallellogramarmarna, skapar utrymme för höga däck och möjliggör maximal styrvinkel. Detta säkerställer maximala styrmöjligheter med en snäv svängradie, även på 1,50 m spår.

Se här videon om svängradien. Var medveten om följande funktioner och fördelar:

• Spårvidd 1,50 - 2,25 m (1,80 - 2,25 m i kombination med 5300 l tank på iXtrack T4)

• Spårvidd i steg om 5 centimeter
• Utrymme för 1,90 m höga däck (2,04 m i kombination med 5300 liters tankkapacitet)
• Svängradie: 4,15 m för iXtrack T3 och 5,25 m för iXtrack T4

• 3.60m svängradie
• 32 graders styrvinkel
• Spårföljning
• Vridande stänkskydd

iXclean
ENFO grundning och sköljning är standard på alla Kverneland spraydatorer. Innan sprutningen påbörjas fylls sprutlinjerna med kemikalier exakt upp till munstycket genom automatisk avstängning. Efter avslutning eller avbrott spolas växtskyddsmedel automatiskt ut ur sprutledningarna med ett minimum av rent vattenförbrukning. Denna ENFO-teknik optimerar fyllning och rengöring av sprayledningarna. Noggrann applicering, inget slöseri med produkter och vattenbesparing är nyttan för miljön.

iXclean Comfort
iXclean Comfort är ett halvautomatiskt ventilstyrsystem. Kombinationen av en elektrisk nivåindikator och sugventil ger förarkomfort och noggrannhet; automatisk påfyllning stannar när den programmerade nivån har uppnåtts och fjärrkontroll av alla ENFO-sköljnings- och fyllningsfunktioner utförs från hytten! Spola linjerna enkelt innan du börjar och skölj dem efteråt.

iXclean Pro
iXclean Pro är en avancerad lösning med helautomatisk, elektrisk ventilhantering. Det betyder att alla funktioner kan styras från hytten. Att växla mellan påfyllning, omrörning, sprutning, utspädning, grundning, sköljning och tankrengöring är extremt enkelt: tryck bara på knappen! Dessutom erbjuder iXclean Pro ett helautomatiskt skölj- och rengöringsprogram i flera steg med trippel utspädning för hela sprutan. Genom att trycka på en knapp startar en omfattande rengöringsprocess inklusive alla linjer. Det är så noggrant att resthalterna efter automatisk rengöring är under 1%.

iXflow-E
iXflow-E är högtryckscirkulationssystemet med elektrisk munstycksreglering. Det finns en fri cirkulation av kemikalier med en återföring av sprayvätska tillbaka till tanken när sprutan slutar. Detta innebär att det inte finns någon sedimentering i sprutlinjerna och inga återvändsgränder för sprutning eller rengöring, även när bommen är i vertikalt läge. Under sprutningen blir varje sektion under tryck från båda ändarna av sprayledningarna, så att operatören omedelbart kan börja spruta utan tryckfall. Det är lätt för operatören att programmera antalet och storleken på sektioner som passar bäst för deras behov och fältsituationer.

The HSS spray boom combines a minimum of weight with maximum strength and stability. Special hardened Domex steel gives the spray boom a long lasting heavy duty high quality reputation. The aluminium bonding instead of welding of the HSA spray boom range provides a weight saving and gives remarkable strength.

HSS Spray Boom
The HSS spray boom is designed for professional use. The triangular construction provides perfect integration of the stainless steel spray lines, nozzles and nozzle holders and the optimal hose routing where all is well protected. Working widths from 18 up to 40 metres with a variation in different section lengths offer the sprayer adapted to customer demands!

HSA Spray Boom
The HSA spray boom offers efficient protection of the nozzle holders within the bottom profile. This profile is designed for easy cleaning and much more. With no sharp angles, no liquid and residues can be trapped. The anodised surface protects against corrosion and scratches.

Compact and Stable
In transport position the HSA and HSS spray boom fold away nicely over the patented tank design and far away from the tractor cab. This results in a transport width of 2.55m and a height below 4m that together with the low gravity point provides excellent stability on the road, as well in the field.

Boom Guide
Boom guide is an automatic boom height control system that helps the operator to maintain your chosen spraying height. Ultrasonic sensors control the sprayer's hydraulics to guide the boom.

Sensors with Hybrid Mode as standard
This unique sensor technology, provides excellent guidance in many different and challenging field conditions and crops. The hybrid mode not only measures the distance to the plant (upper growth), it also measures the distance to the ground or bottom parts of growth at the same time. There are three different modes:

• Soil mode: the sensors only see the bottom. The soil remains representative.
• Crop mode: the sensors only see the crop. In a closed crop the sensors continue to automatically follow the crop (top).
• Hybrid mode: the sensors see the crop and the soil. The sensors follow the soil surface and the crop. When the crop is uneven, a uniform crop is virtually determined. Used in unclosed or uneven crops.

The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.

Boom Guide ComfortActive
The two ultrasonic sensors, with integrated roll sensors on the boom, can control the spray height via the central slope correction and boom lift functions. A proportional hydraulic valve is steering the central, hydraulic slope correction cylinder. The cost-effective system is suited to gentle slopes, uneven crop conditions and lower driving speeds.

Boom Guide Pro
This advanced system uses three ultrasonic sensors to control left- an right-hand boom sections independently for the ultimatic guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every situation!

Boom Guide ProActive
The system proactively reacts on boom movement and controls both the central and independent slope correction, as well as boom lift functions to guide the boom over the crop canopy, soil surface or a combination of both modes.

Boom Guide 5 Sensor Extension
The Boom Guide 5 sensor extension provides two additional ultrasonic sensors to ensure proper height measurements with booms reduced to 24 metres.

Balancing in Flatland Conditions
An especially designed balancing system for flatland conditions is available for HSS spray booms from 32-40 metres. This system does not require any electronic boom guidance in flatland areas. The advantage is a perfect boom guidance at higher speed and a total respect of the optimal nozzle distance to the crop, which result in highest efficiency of the application and reducing drift to a minimum level.

Storage Locker
A storage locker is integrated on the left hand side behind the door allowing you to keep your safety and cleaning equipment or tools with you on the sprayer. An additional storage locker is available for the right hand side to create even more storage place.

Easy Accessible Filters
The transparant filter bowl provides direct view on the dirt degree of the suction filter without dismounting. A valve at the bottom allows emptying the filter content before removing the bowl to avoid contamination of the hands with chemicals. The self cleaning pressure filter prevents blocking via a continuous flow keeping the filter mesh clean. The undissolved particles are returned into the tank until they are completely dispersed.

Chemical Inductor
The chemical inductor is an integrated part of the tank design. It is located next to the valve panel for easy access. Equipped with a circular rinsing system and waterproof cover, it can be rinsed safely with closed cover. Big quantities of powder and difficult mixtures are injected without any problems within seconds!

Clean Water Tank
The clean water tank is equipped with a level indicator. It can be filled via the opening on the clean water tank. It contains sufficient clean water for thorough cleaning with the several iXclean functions.

Filling via the Suction hose
External aspirate water is filtered first by the filter on the hose and then by the suction filter. In parallel you can already use the chemical inductor to add and premix chemicals.

Hand Wash Tap
You can wash your hands via the hand wash tap which is centrally located on the valve panel.

External Washing
A cleaning kit with a 15 metre hose and a brush, can be connected to the pressure side of the pump. It is allowing precleaning of the sprayer in the field, using water from the clean water tank.

Dual Agitation System
The return flow agitation system keeps the mixture homogeneous during operation and can be easily switched off in case of foam risk or nearly empty tank. The powerful high pressure agitation with injector nozzles guarantees powerful mixing which can activate after filling or a long break.

The iXtrack T series are 100% ISOBUS compatible as standard, which means easy plug and play with the IsoMatch Tellus GO+ or PRO or any other AEF certified terminal. The innovative iXspray hardware and software with intuitive touch interface guarantees an user friendly operation of the sprayer. iXspray is full of nice features to make the operators life easy, save time and avoid mistakes in a busy working season, for example pre-sets for spray jobs and boom configuration can be configured easily.

IsoMatch Grip
The IsoMatch Grip adds control to your fingertips for easy control of the sprayer. From 1 up to 44 functions over 4 modes can be programmed freely by the operator. So you can start with basic functionalities and add other functionalities later on demand. Due to the ISOBUS AUX-N functionality the IsoMatch Grip can also be used to control other implements.

IsoMatch GEOCONTROL
The combination of IsoMatch GEOCONTROL and GPS allows the operator to reduce overlap and over dosing, to increase crop quality and save costs. All this in combination with even high flow rates, because there is no impact on the section length, no loss of pressure or an unequal flow between sections. IsoMatch GEOCONTROL application fulfils the need in terms of easy, smart and efficient farming, by providing the use of automatic section control and variable rate applications.

Next to the iXtrack T4, there is a model which is called iXtrack T4 Essential.

The Essential models are based on the most essential specifications and options, which a modern up to date trailed sprayer must have nowadays. Especially for the medium market segment of arable farms and mixed farms.

Ease of use

The iXtrack T4 Essential will have the innovative iXspray hardware and software with intuitive touch interface guarantees and user friendly operation of the sprayer. The iXtrack T4 is standard equipped with the ErgoDrive functionality and has manual valves (iXclean Comfort as an option).

Stability

Like the iXtrack T4 is the iXtrack T4 Essential model equipped with a smooth, suspended parallelogram that is active in spraying position, but also during transport for optimal boom stability. The parallelogram combines optimal stability with soft boom balancing and limited vertical movement to minimise spray height deviations, securing correct crop coverage.

Intelligent Electronics

The iXtrack T4 Essential is fully ISOBUS compatible. It means easy plug and play with the IsoMatch Tellus GO+ or PRO or any other AEF certified (tractor) terminal as an option.

Techncial specifications

With its advanced hardware and software features, the IsoMatch Tellus PRO provides the optimal precision farming solution for an all-in-one control system inside your tractor cab.

IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.

More about the Tellus PRO >

Work easy. Be in control.

IsoMatch Tellus GO+ is especially developed for controlling the machine in a simple way. The farmer is in full control of the machine in exactly the way he wants. Easy set up the machine with the soft keys via the 7-inch touch screen. And, optimal control while driving, just use the hard keys and rotary switch. Controlling the implement has never been so easy.

This can be you your first step into Precision Farming
IsoMatch Tellus GO+ makes it easy to control any ISOBUS machine from your tractor cab. IsoMatch GEOCONTROL enables you to achieve higher yields, lower costs and do your work with less hassle. This licence key is divided in two parts, Section Control and Variable Rate Control, which are available from the IsoMatch Shop. Now you can buy the specific functionality that you need.

More about IsoMatch Tellus GO+ >

Made for smart, efficient and easy farming

IsoMatch GEOCONTROL is an advanced software application within the IsoMatch Tellus PRO and IsoMatch Tellus GO+ that helps you to control all ISOBUS compatible Kverneland Group machines such as sprayers, spreaders and seeders! Combined with a GPS receiver it fulfils the future needs in terms of easy, smart and efficient farming!

More about IsoMatch GEOCONTROL >
