Optima RS (SX)
Kverneland Optima RS för hög precision och prestanda

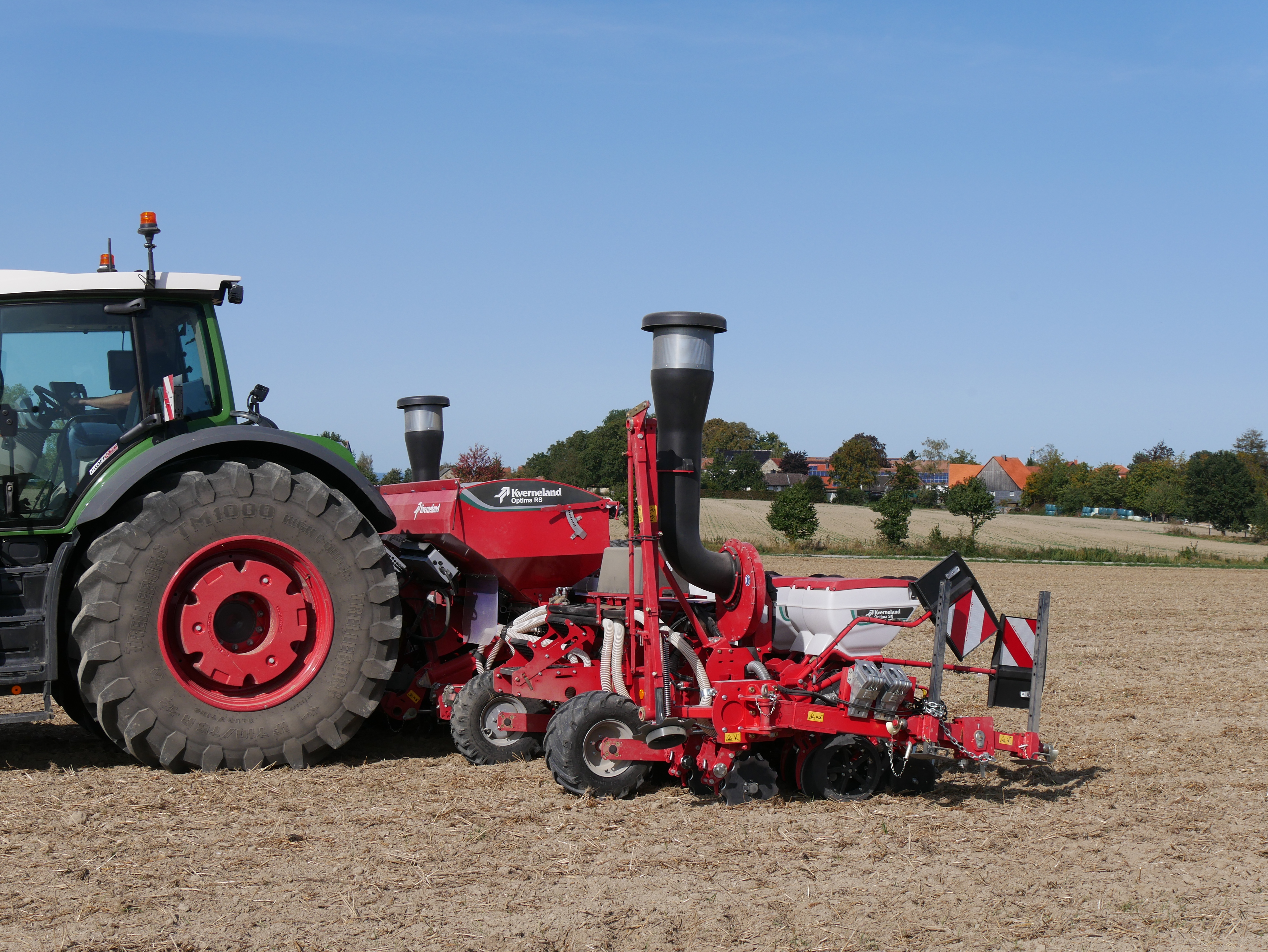

Den styva pneumatiska precisionssåmaskinen Kverneland Optima RS med höghastighetssåaggregat för stark prestanda och hög produktion.
Höjdpunkter
High speed - up to 18km/h Optimum depth control Effective ground contour Small coulter for precise seed placement 60 litres seed hopperBeskrivning

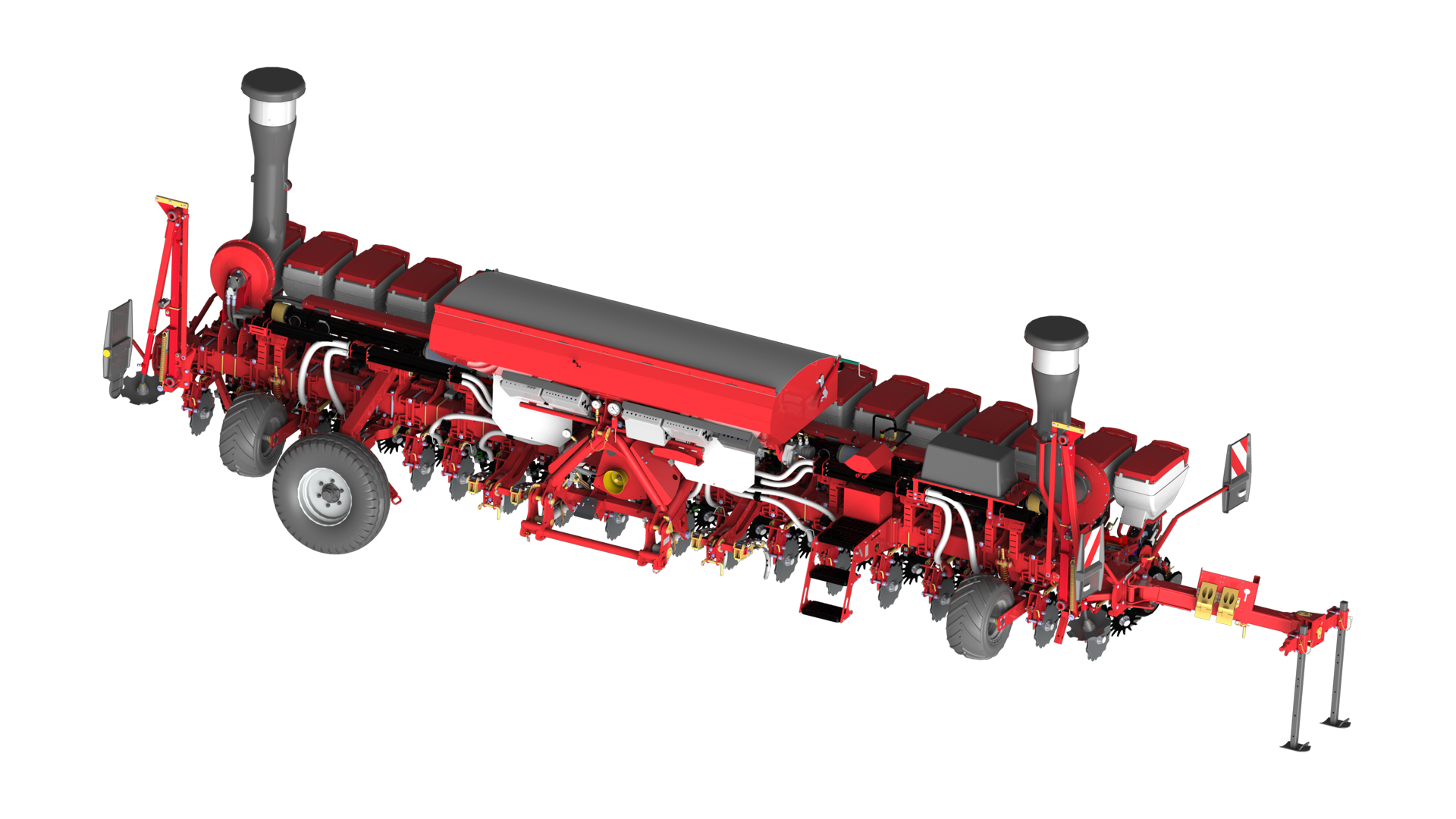

Den pneumatiska precisionssåmaskinen Optima RS med stel ram har utformats för lantbrukare och entreprenörer som letar efter en solid och effektiv lösning. Optima RS-ramen finns tillgänglig i arbetsbredder från 6,1 m till 9,3 m. Optima RS-ramen kan justeras till olika radbredder, från 45 cm till 80 cm i jämna och ojämna konfigurationer och är redo att bära upp till 18 rader.
Optima RS-ramen kan utrustas med en stor 2000-liters gödselbehållare eller alternativt kombineras med en frontbehållare för en bra viktfördelning. Dessutom finns den eldrivna mikrogranulatapplikatorn mikroborr tillgänglig.

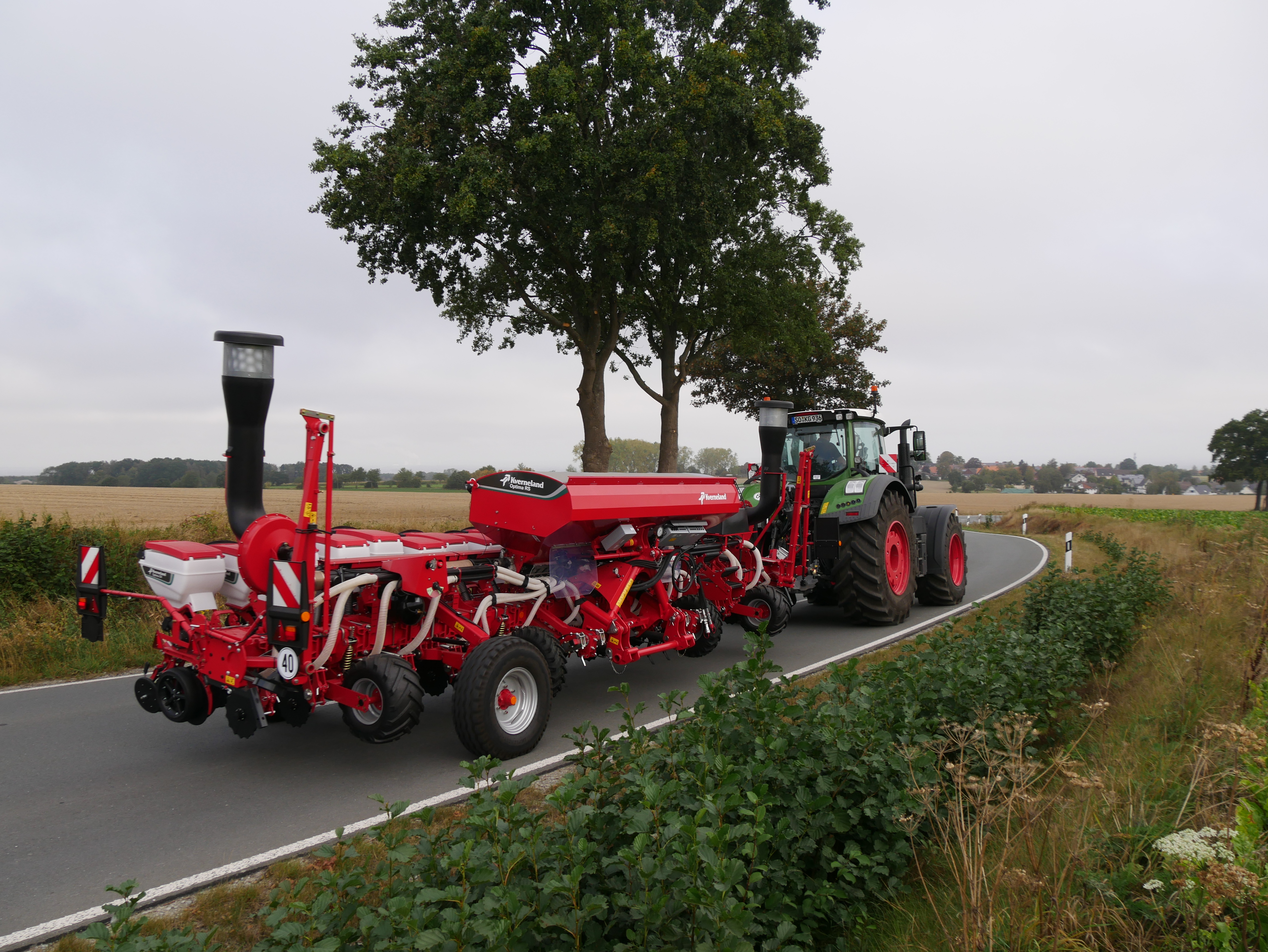

En kraftig transportanordning i längdriktningen finns tillgänglig. Maskinen uppfyller det nya EU-typgodkännandet och är redo för transport i 40 km/h när den är utrustad med pneumatiskt bromssystem (tillval)
Egenskaper

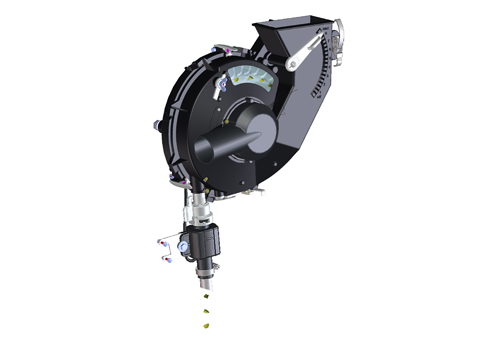

With the pressurized seeding heart, the seeds are “shot” by an airstream of up to 70kph into the furrow. A smooth, flexible intermediate press wheel catches and protects the delicate seeds. Any negative impact such as vibration on the way between release point and soil contact are eliminated due to the high air stream.
The seeds reach their perfect position in the soil. Each sowing row is electrically powered by ISOBUS connection. An additional generator or other power sources are not required. The complete power supply and control is via ISOBUS.
e-drive II – complete control and monitoring of the machine from the tractor cab in accordance with ISOBUS standard
- With e-drive II, each sowing unit is driven individually via an electric motor.
- The low-maintenance drive is connected directly to the seeding heart via a toothed belt in an encapsulated dust proof housing.
- This enable an extremely compact design and smooth drive characteristics with low current consumption
- All the data is entered and read out via an ISOBUS terminal like IsoMatch Tellus PRO or Tellus GO+.
- The sowing distances are infinitely adjustable and can be changed during sowing.
- All the sowing units can be switched off individually.
- In conjunction with “close row” sowing widths of 37.5cm a further benefit of the e-drive II comes into play: Individual tramline switching. Tramlines can be set up for any spray width.
- The e-drive II features complete electronic monitoring of all machine functions including seed monitoring via an opto sensor.
IsoMatch GEOCONTROL - Cost saving with immediate payback
Seeding with GPS and GEOCONTROL in combination with an electric driven precision drill is a major step towards precision and cost saving. These machines are all equipped with ISOBUS technology which with the help of the IsoMatch Tellus terminal, can be easily controlled.
Each electric driven seeding element, in combination with GPS and GEOCONTROL, is automatically switched on or off in exactly the right place, ensuring there is no overlap with any row that has already been seeded. This is especially handy in triangular fields, on curved or irregular shaped headlands.
GEOSEED - Precision at high end
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Micro-drill for Optima HD-II and SX sowing units
The demand for microgranule applicators is increasing. Micro nutrients and also small amounts of insecticides or fungicides ensure the best start of the crop.
The electric driven micro-drills for the Optima HD-II and SX sowing units have been designed as backpack behind the sowing units and offer a hopper capacity of 17 liters.
They are electrically driven and ISOBUS controlled. The metering device consists of a wear-resistant plastic housing with exchangeable cell wheels made of stainless steel. This ensures the precise metering of the micro granules.
Operator’s safety
The engineers had focus on highest level of operator’s safety by offering easy and safe handling of the applicator. Therefore, the operator can exchange the cell wheels even when the hoppers are full of micro granule. There is no need to empty them first, reducing the operator’s risk of getting in direct contact with the granules.
A plus for the environment
The micro granules fall freely into the seed furrow without any air support, minimising the emission of dust. Therefore, the new micro-drill fully complies with the current guidelines for emission control of any granules applied.
Precision Farming
The comfortable, fully ISOBUS integrated control system allows the adaption to the stop and starting points of the seed row. This ensures precise shutting on and off at the end of the field and in tramlines (without overlaps or faults).
Precisionsjordbruk
When deciding what equipment to purchase, it is not always easy to find the optimal solution in the broad market offering of today. Technology is developing fast and tractors and implements are more and more equipped with high tech electronics. We understand this complexity and are committed to provide you with easy farming solutions. Therefore these cost-efficient ISOBUS Universal Terminals, IsoMatch Tellus PRO and IsoMatch Tellus GO+ are made for easy machine control and efficient farming.
With its advanced hardware and software features, the IsoMatch Tellus PRO provides the optimal precision farming solution for an all-in-one control system inside your tractor cab.
IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.
Work easy. Be in control.
IsoMatch Tellus GO+ is especially developed for controlling the machine in a simple way. The farmer is in full control of the machine in exactly the way he wants. Easy set up the machine with the soft keys via the 7-inch touch screen. And, optimal control while driving, just use the hard keys and rotary switch. Controlling the implement has never been so easy.
This can be you your first step into Precision Farming
IsoMatch Tellus GO+ makes it easy to control any ISOBUS machine from your tractor cab. IsoMatch GEOCONTROL enables you to achieve higher yields, lower costs and do your work with less hassle. This licence key is divided in two parts, Section Control and Variable Rate Control, which are available from the IsoMatch Shop. Now you can buy the specific functionality that you need.
Made for smart, efficient and easy farming
IsoMatch GEOCONTROL is an advanced software application within the IsoMatch Tellus PRO and IsoMatch Tellus GO+ that helps you to control all ISOBUS compatible Kverneland Group machines such as sprayers, spreaders and seeders! Combined with a GPS receiver it fulfils the future needs in terms of easy, smart and efficient farming!
GEOSEED increases the yields of row crops and ensures maximum efficiency. Seeds are placed perfectly in line and in relation to each other.
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Teknisk specifikation
Teknisk specifikation
Ladda ner broschyren| Model | Optima RS | Optima RS | Optima RS | Optima RS | Optima RS | |
|---|---|---|---|---|---|---|
| Frame type | rigid | rigid | rigid | rigid | rigid | |
| Working width (m) | 6.10 | 6.80 | 7.60 | 8.30 | 9.30 | |
| No. of SX sowing rows | 8 - 12 | 8 - 12 | 12 | 12 - 18 | 12 - 18 | |
| Row width SX row (cm) | 45-80 | 45-80 | 65 | 45-70 | 50-80 | |
| Transport width (m) | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | |
| Mechanical drive of row | Option | Option | Option | Option | Option | |
| e-drive II, ready for GEOSEED® | Option | Option | Option | Option | Option | |
| Fan drive 1000rpm | Option | Option | Option | Option | Option | |
| Fan drive 800rpm | Standard | Standard | Standard | Standard | Standard | |
| Hydraulic fan drive | Option | Option | Option | Option | Option | |
| Linkage | CAT III / CAT IV N | CAT III / CAT IV N | CAT III / CAT IV N | CAT III / CAT IV N | CAT III / CAT IV N | |
| Tyres 7.00-12AS | Option | Option | Option | Option | Option | |
| Tyres 26x12.00STG | Standard | Standard | Standard | Standard | Standard | |
| Hydraulically operated track marker | Standard | Standard | Standard | Standard | Standard | |
| Hydraulically frame ballasting kit | Option | Option | Option | Option | Option | |
| Mounted fertiliser spreader | Option | Option | Option | Option | Option | |
| Maximum no. of rows with mounted fertiliser spreader | 12 | 12 | 12 | 18 | 18 | |
| Mechanical drive of fertiliser spreader | Standard | Standard | Standard | Standard | Standard | |
| Electro-hydraulic drive of fertiliser spreader | Option | Option | Option | Option | Option | |
| Fertiliser hopper capacity in litres | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | |
| No. of rows with front hopper f-drill / iXtra LiFe | 8 - 12 | 8- 12 | 12 | 12 - 18 | 12 - 18 | |
| Micro granule applicator micro-drill | Option | Option | Option | Option | Option |
Teknisk specifikation
Teknisk specifikation
Ladda ner broschyrenOptima SX seeding row |
|
Hopper capacity (liter) |
60 |
V-press wheel 25mm |
• |
V-press wheel 50mm |
º |
Electronic drive e-drive II |
• |
Rape Kit |
º |
Max. driving (km/h) |
18 |
Min. row width (cm) |
40 |
Weight (kg) |
129 |
