Kverneland 850
Specialisten på strömedel
Helburen balsnittare för arbete med halm för ströändamål.
Höjdpunkter
- 2.0m³ behållare
- Buren version för ströning
- Klarar upp till två rundbalar i ett
- Svängbart utkastarrör för noggrann ströning
- Kastar ut halm på ett avstånd på upp till 18 meter.
Beskrivning

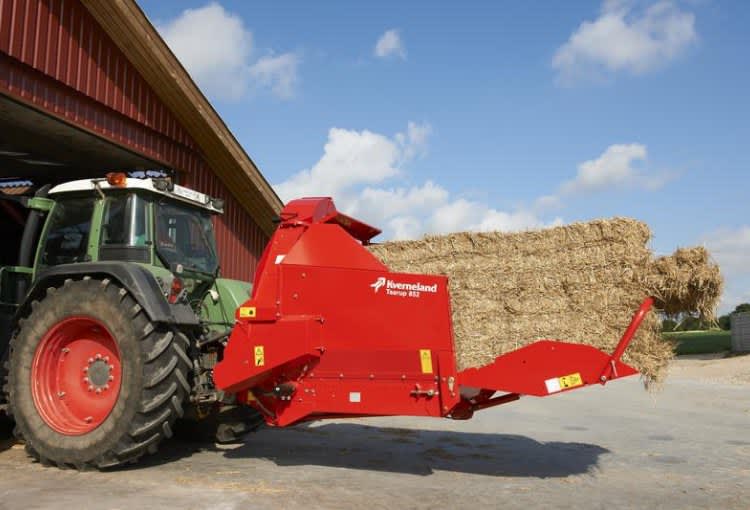

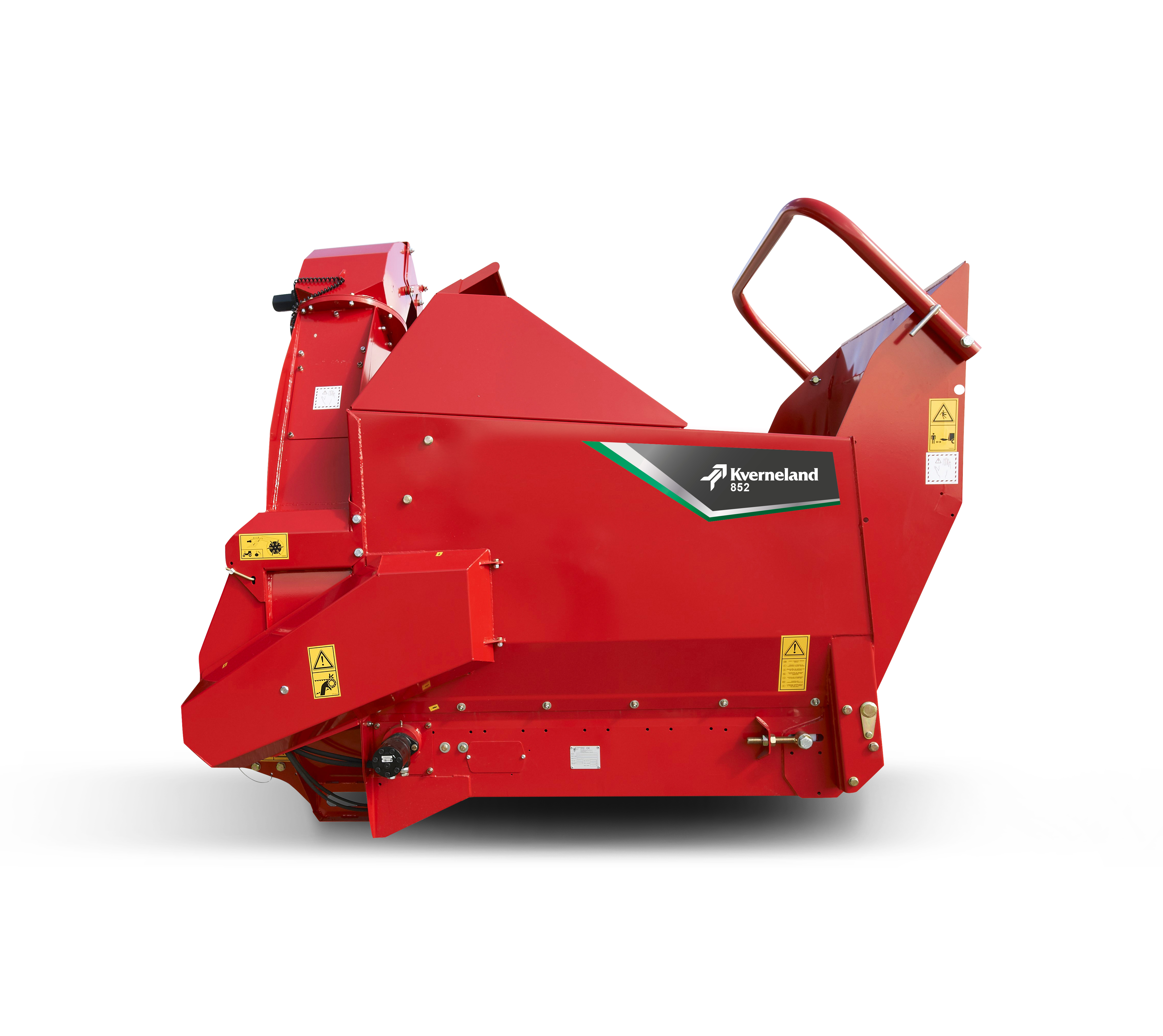

Kverneland 852 är en helburen balsnittare som är speciellt utformad för arbete med halm för ströändamål. Kammaren på 2 m3 ger snabb och enkel lastning av balar och den bakre dörren ger möjlighet att bära en extra bal för förbättrad effektivitet. Hjärtat i 852 är kombinationen av trumma, kam och svänghjul - alla speciellt utformade för att riva halmbalar i alla format. Kverneland 852 är som standard utrustad med ett svängbart utkastarrör för exakt direktströning. För utfodring finns en ensilagesats med förlängd kam tillgänglig.
Egenskaper
Egenskaper

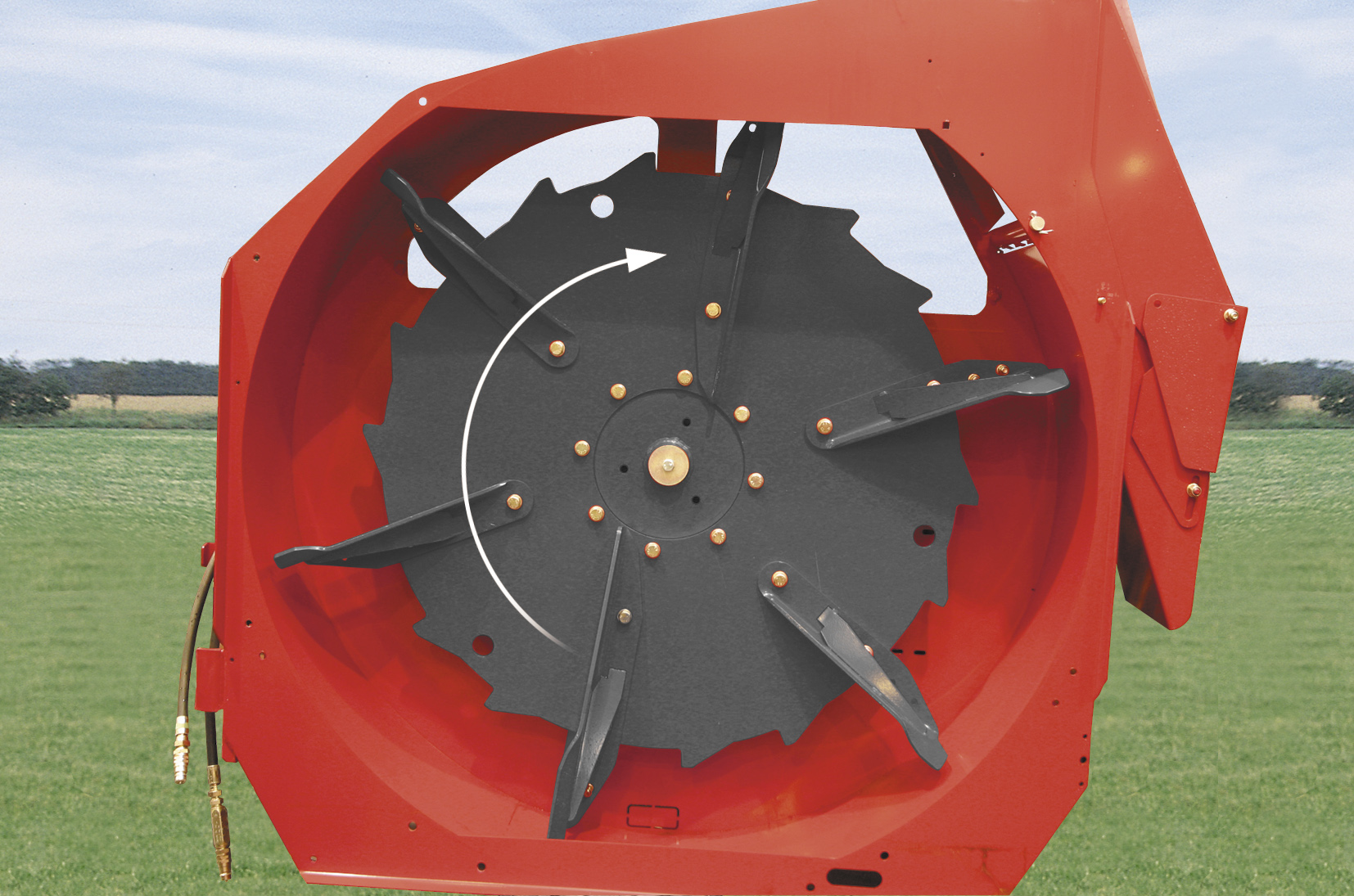

- The 1.55m diameter flywheel of the Kverneland 850 series is fitted with 6 blowing paddles, providing a powerful blow for the most efficient distribution of the material and an excellent cleaning of the flywheel housing.
- The flywheel does not chop the straw, thus ensuring virtually full length material suitable for bedding of covered yard areas.
- In combination with the 2-speed gearbox (standard on models 853 and 856) the flywheel can throw straw up to 18.00m (on high speed) or gently feed hay/silage at the side of the machine (at low speed).
- With the 280° swivel chute discharge straw can be blown up to 15.00m.

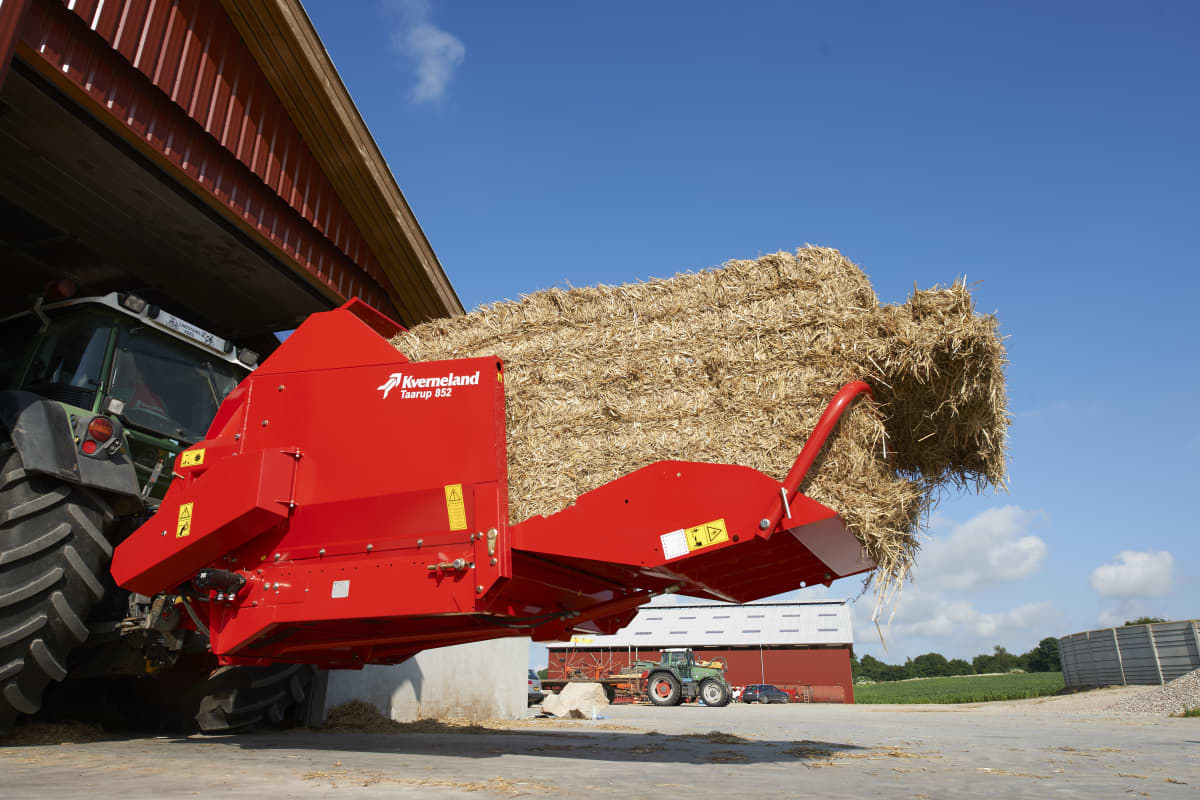

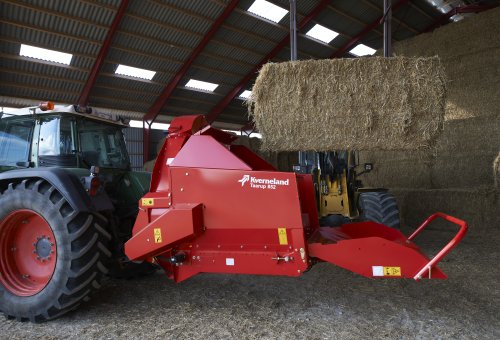

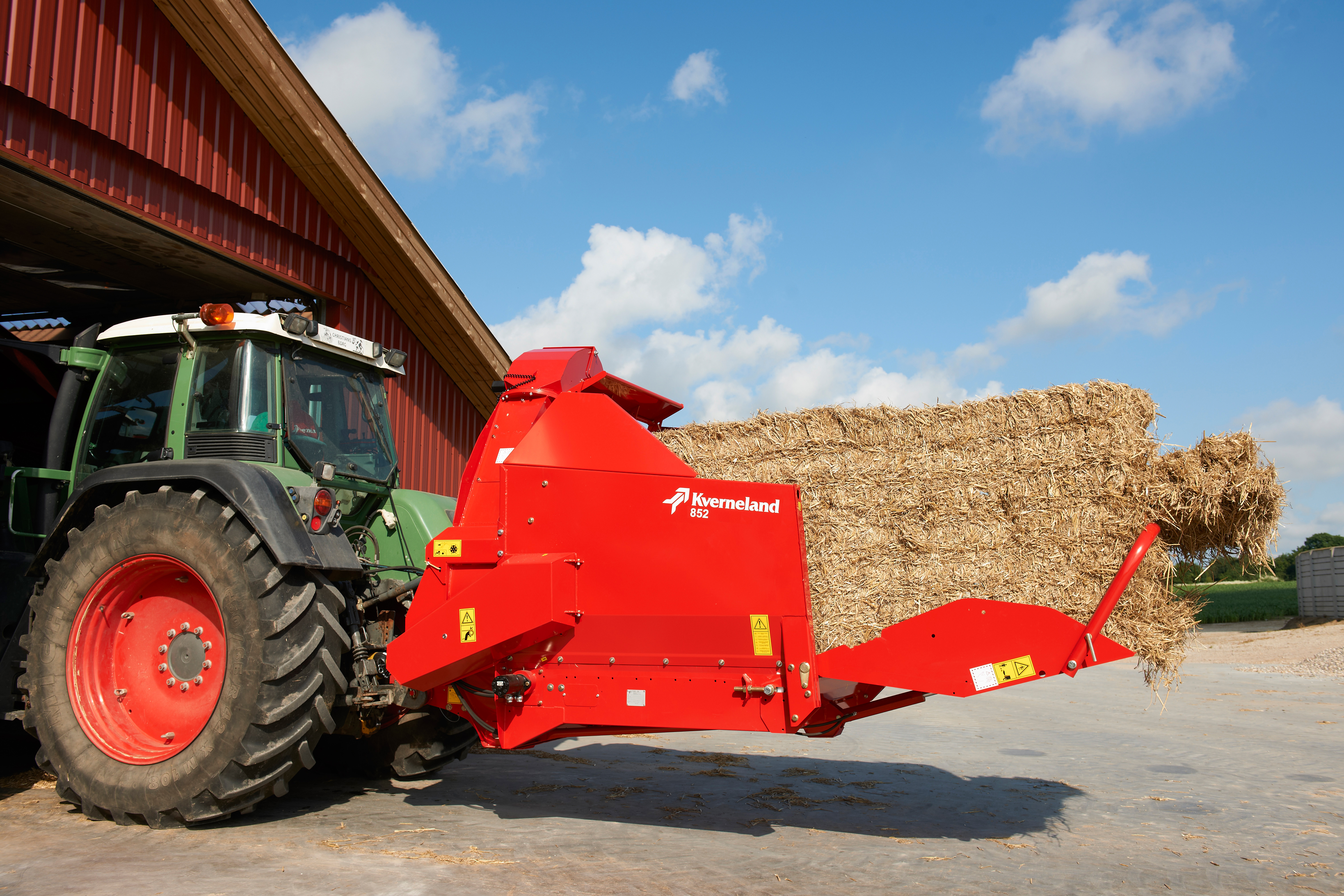

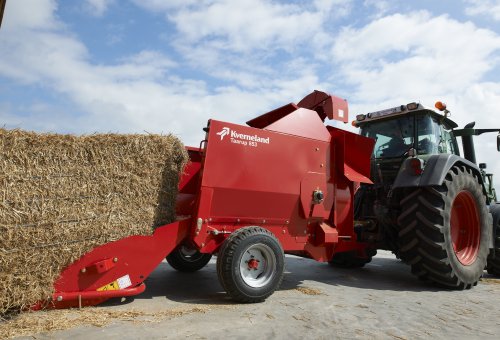

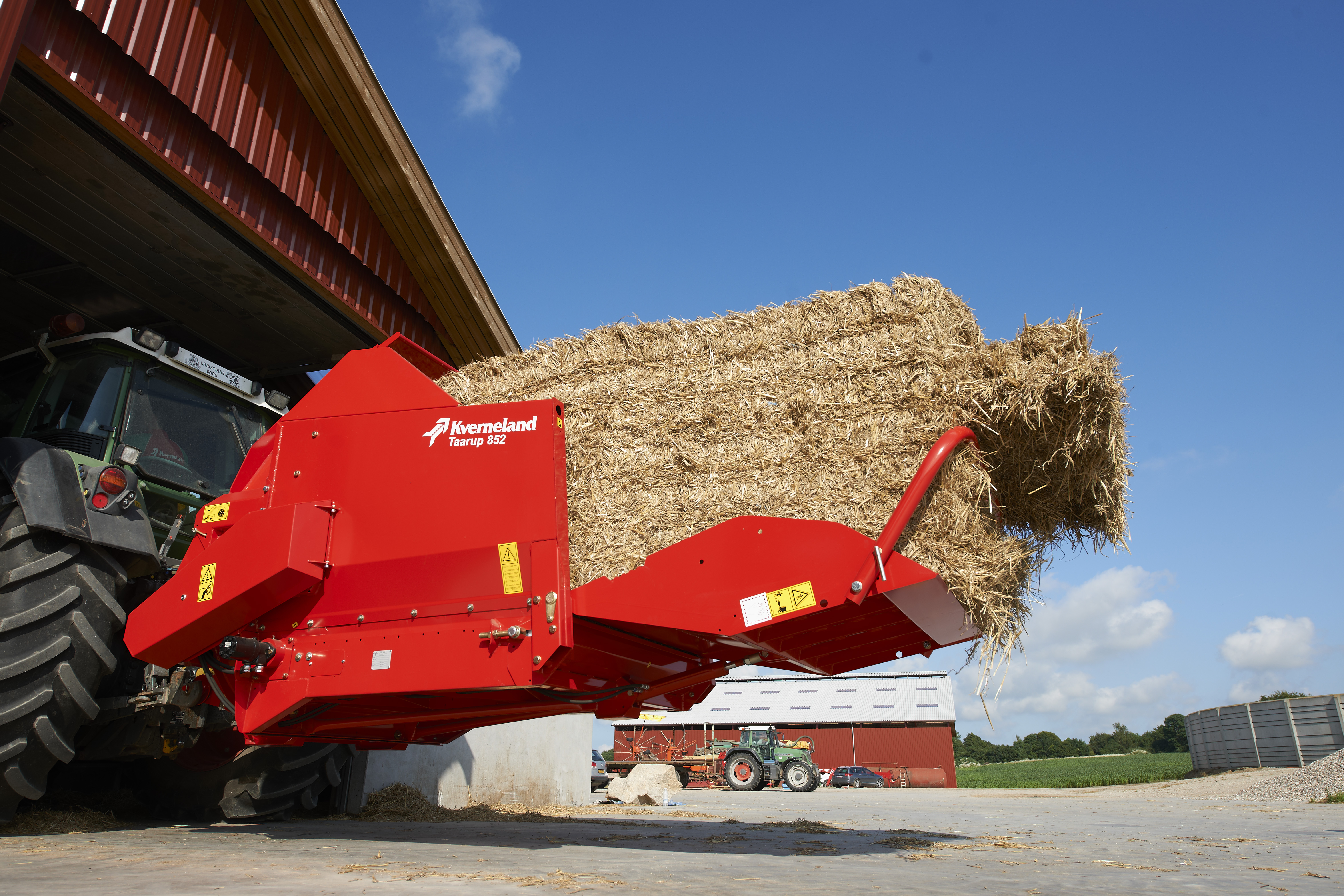

- The hydraulically operated rear door fitted to 800 series provides a self loading facility for easy loading of square and round bales.

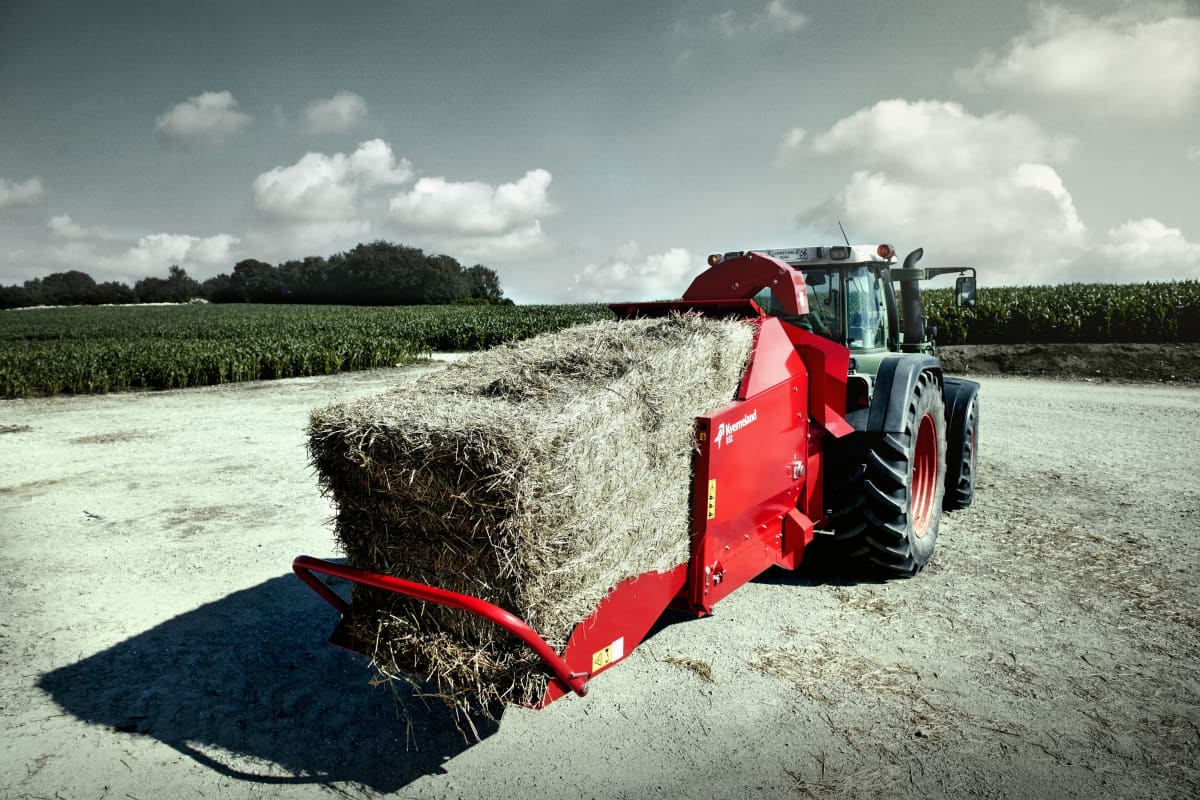

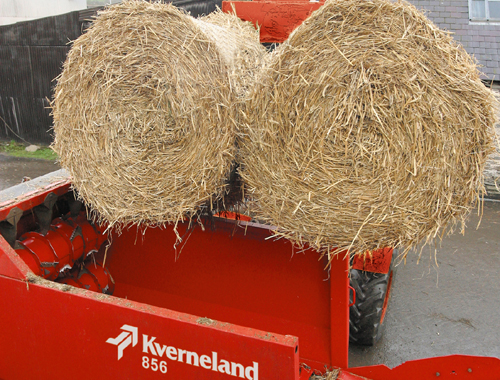

- The rear door also offers the ability to carry a second round bale for increased capacity.
- A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation.

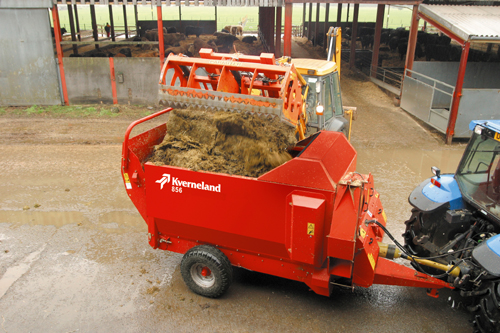

- The size of the bale chamber makes it very easy to load the material with a loader - and two round bales can be loaded at the same time - saving time.

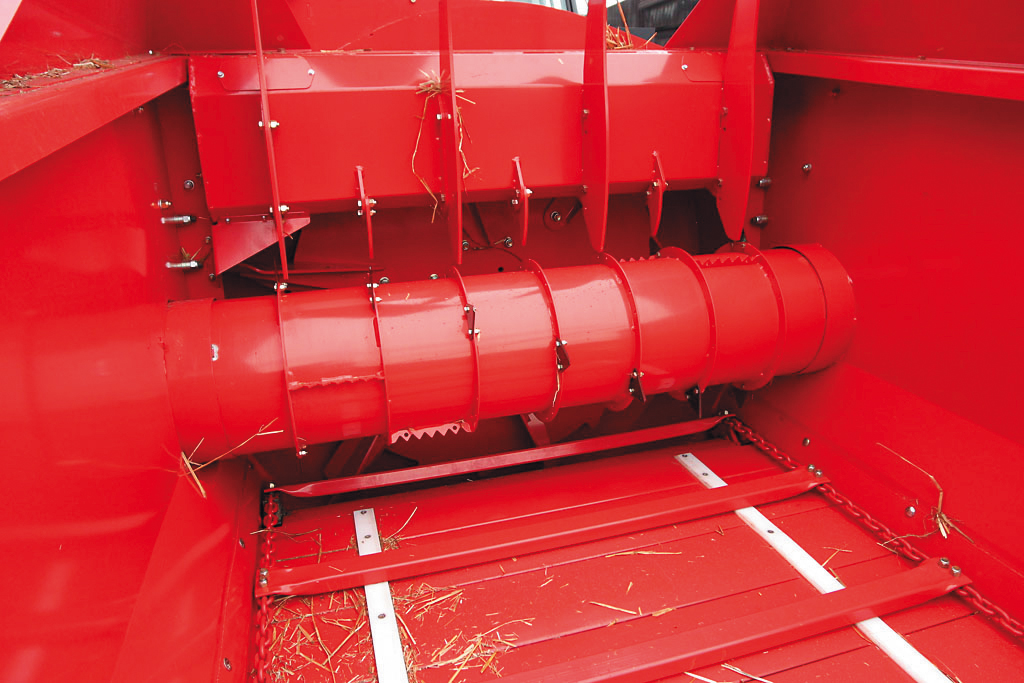

- The working heart of the 852 is the combination of drum, comb & flywheel – all specifically designed to shred straw bales in all formats.

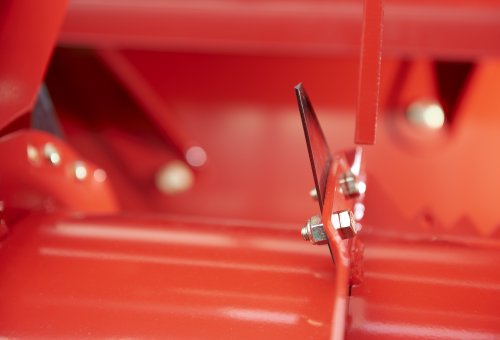

- The drum is fitted with spirals of blades and small ‘gripper’ teeth, which take the straw from the bale and feed it evenly into the flywheel chamber.

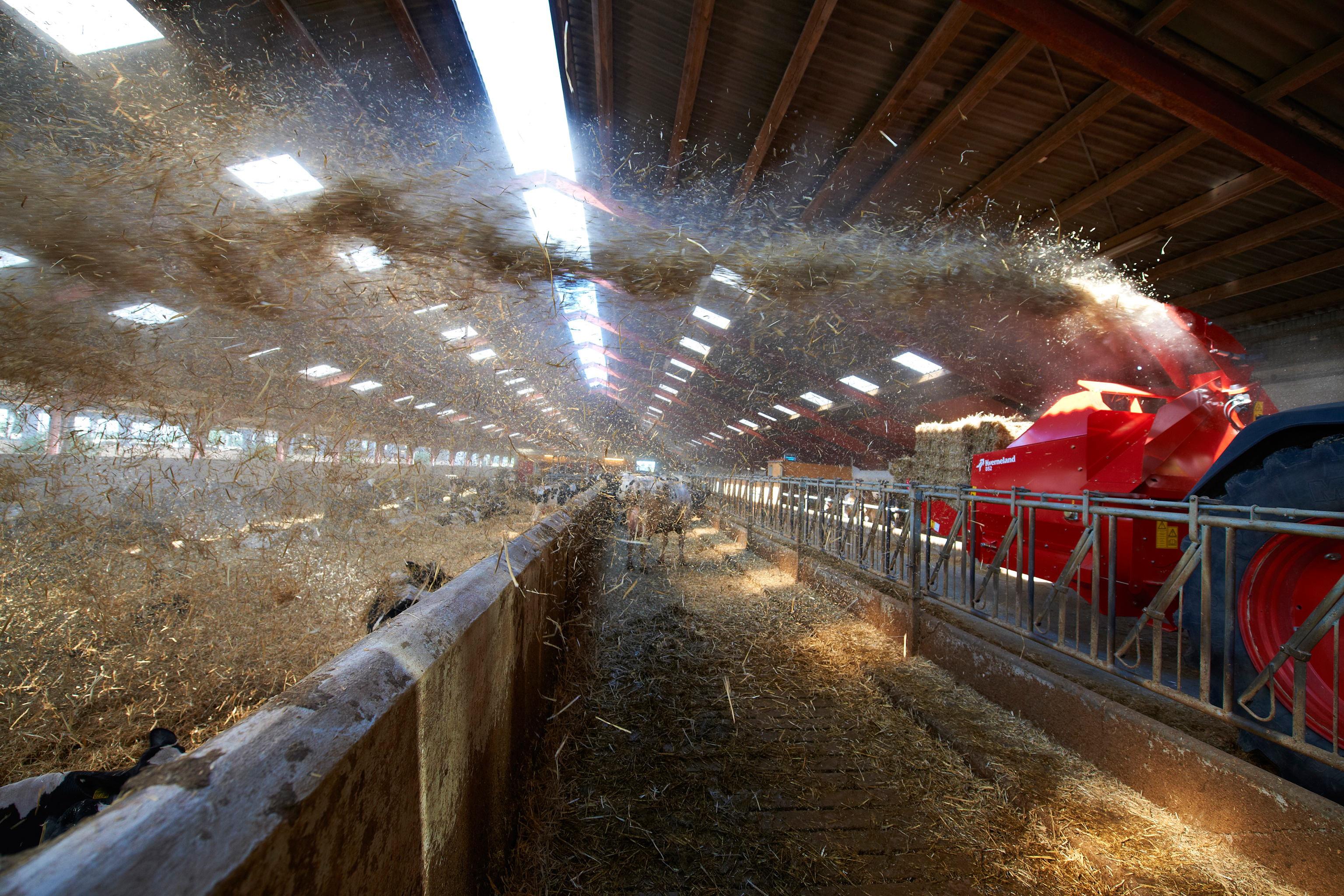

- The flywheel can discharge the straw via the 280° swivelling chute at distances up to 15 metres - even feed of the straw onto the flywheel reduces blockage risk and maintains tractor power needed at a minimum level.

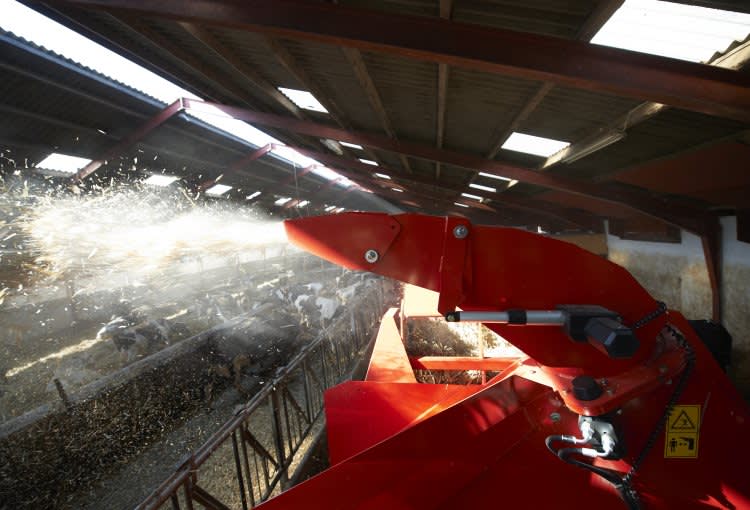

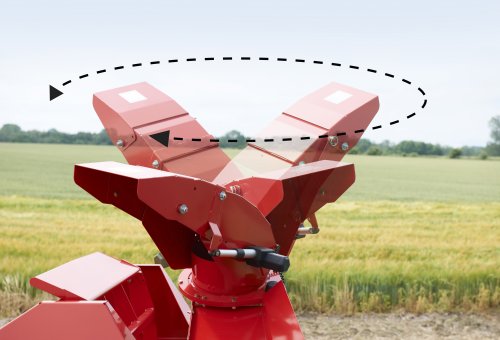

- The Kverneland 852 is fitted as standard with a new swivel chute that offers a 260° rotation of the chute.
- It allows the operator to accurately direct bedding materials into otherwise inaccessible areas of the building.
- The new chute is positioned right above the flywheel where the blow is strongest.
- This give a more efficient distribution of the material and reduces the risk of blockages.
- The end flap of the swivel chute operates via an electric actuator whilst the 260° rotation of the chute is hydraulically operated.
- The Kverneland 852 can discharge the straw at a distance of up to 15m.
- The working heart of the 852 is the combination of drum, comb & flywheel – all specifically designed to shred straw bales in all formats.
- The drum is fitted with spirals of blades and small ‘gripper’ teeth, which take the straw from the bale and feed it evenly into the flywheel chamber.
- The flywheel can discharge the straw via the 280° swivelling chute at distances up to 15 metres - even feed of the straw onto the flywheel reduces blockage risk and maintains tractor power needed at a minimum level.
- The Kverneland 852 is fitted as standard with a new swivel chute that offers a 260° rotation of the chute.
- It allows the operator to accurately direct bedding materials into otherwise inaccessible areas of the building.
- The new chute is positioned right above the flywheel where the blow is strongest.
- This give a more efficient distribution of the material and reduces the risk of blockages.
- The end flap of the swivel chute operates via an electric actuator whilst the 260° rotation of the chute is hydraulically operated.
- The Kverneland 852 can discharge the straw at a distance of up to 15m.
- The 1.55m diameter flywheel of the Kverneland 850 series is fitted with 6 blowing paddles, providing a powerful blow for the most efficient distribution of the material and an excellent cleaning of the flywheel housing.
- The flywheel does not chop the straw, thus ensuring virtually full length material suitable for bedding of covered yard areas.
- In combination with the 2-speed gearbox (standard on models 853 and 856) the flywheel can throw straw up to 18.00m (on high speed) or gently feed hay/silage at the side of the machine (at low speed).
- With the 280° swivel chute discharge straw can be blown up to 15.00m.
- The hydraulically operated rear door fitted to 800 series provides a self loading facility for easy loading of square and round bales.
- The rear door also offers the ability to carry a second round bale for increased capacity.
- A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation.
- The size of the bale chamber makes it very easy to load the material with a loader - and two round bales can be loaded at the same time - saving time.
Teknisk specifikation
Teknisk specifikation
Ladda ner broschyren
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Modell | 852 | |
|---|---|---|
| Utblås | 3-stegs svängbart utblås | |
| Kubisk volym (m3) | 2.00 | |
| Blåsavstånd* (m) | upp till 18 | |
| Chassi | Helburen | |
| Knivtrumma | Enkel trumma | |
| Erforderlig kraftuttagseffekt min (kW/hk) | 40/55 |
Unable to load the table
* Beroende på material och ladugårdsspecifika förhållanden |
Teknisk specifikation
Teknisk specifikation
Ladda ner broschyrenKubikvolym |
Lastkapacitet |
Effektbehov (min). |
|
852 |
2m³ |
800kg |
40/55 kW/HK |
* Beroende på material och ladugårdsspecifika förhållanden |
