Kverneland ROC RS 1000
Pick-up strängläggare | Pickup-strängläggare
Den enda pickup-strängläggaren på marknaden som kan arbeta med endast ett band nere medan de andra är i transport.

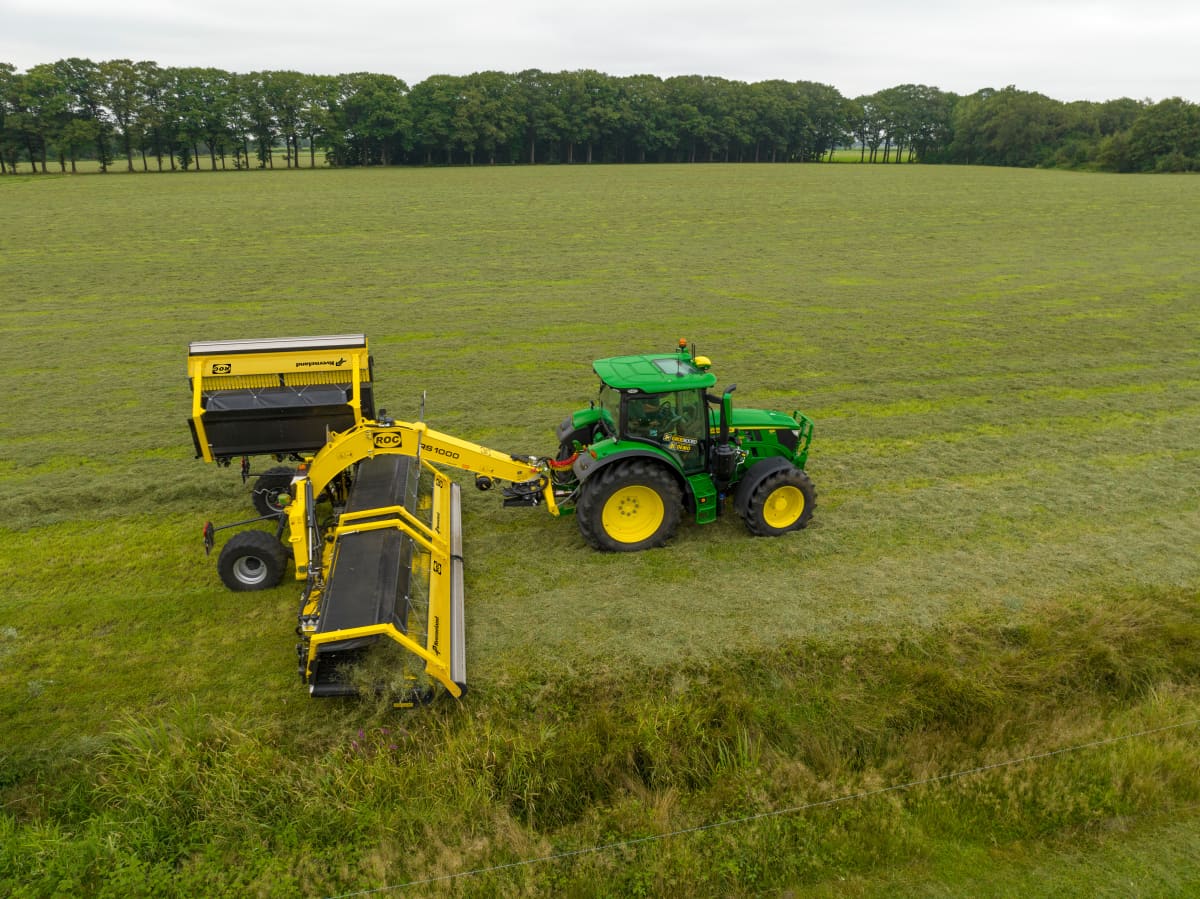

Bakmonterade pickup-strängläggare med hög kapacitet och tre band med 10 m arbetsbredd för intern leverans
Höjdpunkter
- Unik pinnkonstruktion och kontrollerad pickup för rent arbete av grödan
- Minskad tvinning av hö och minimerad förlust av gröda
- Innovativ mattkonstruktion för rena och luftiga strängar
- Hydraulisk justerbar och avfjädrad rulle är idealisk för arbete i korta grödor
- Traktorn kräver endast 100 hk, för låg energiförbrukning och bättre skördetid
Beskrivning

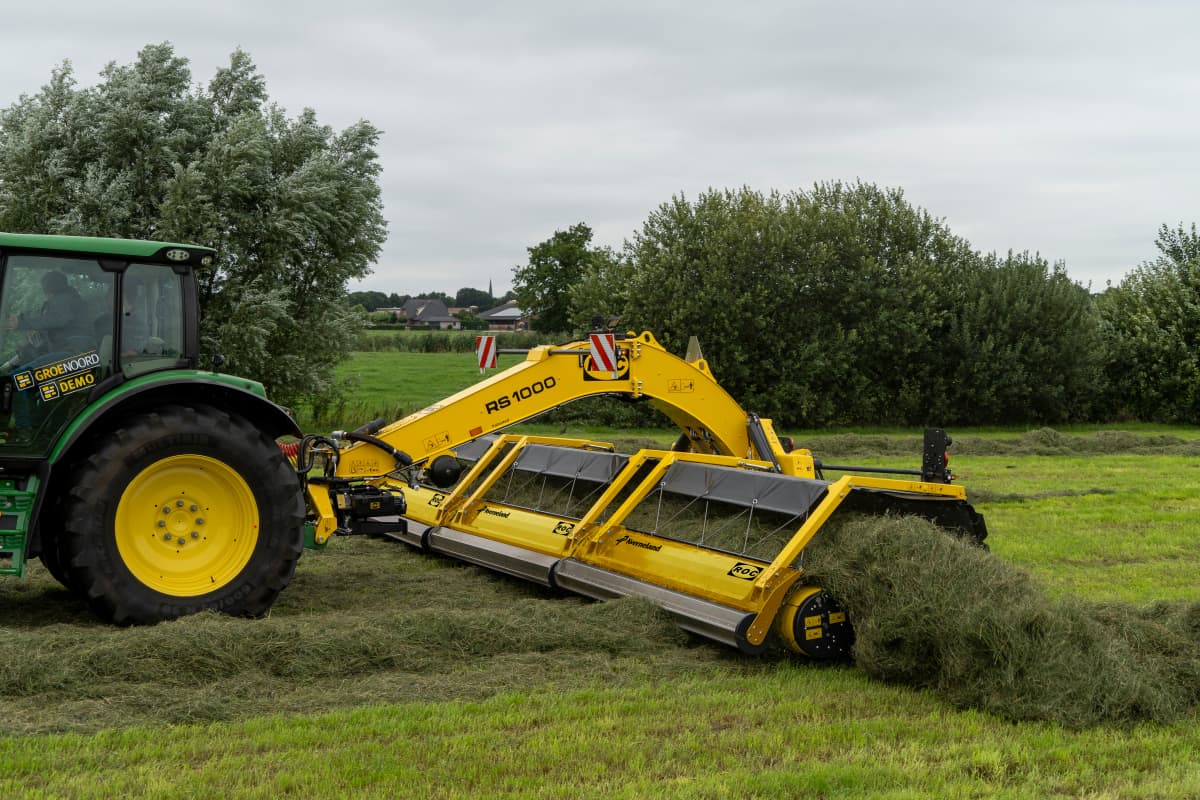

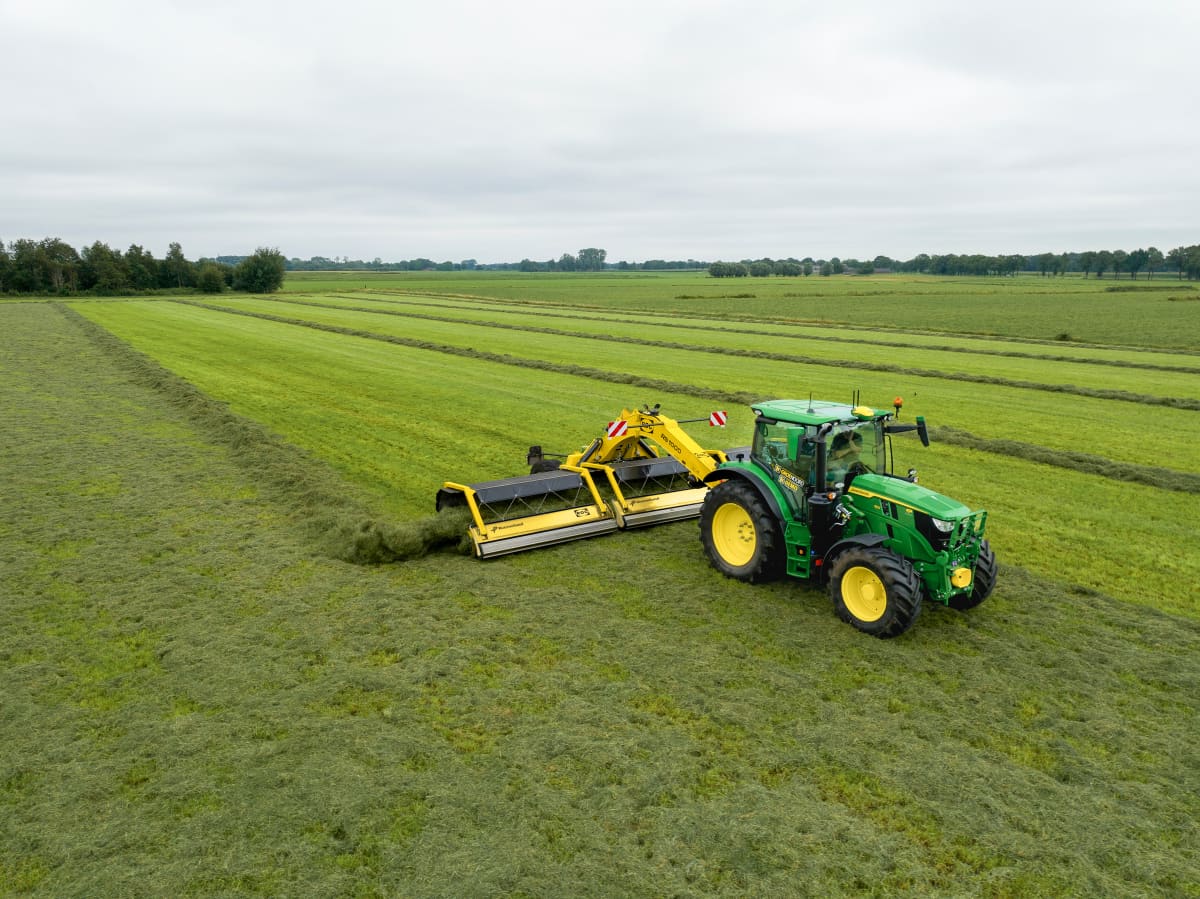

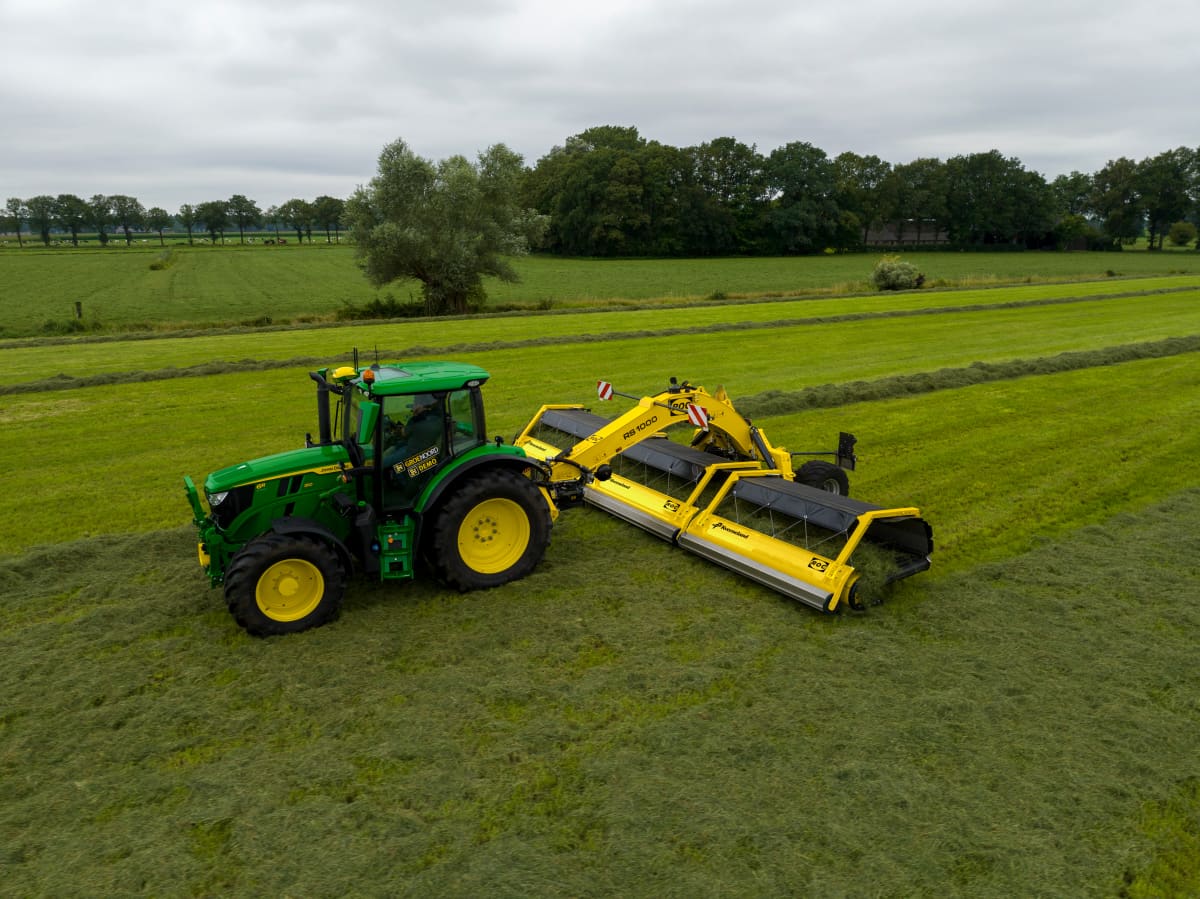

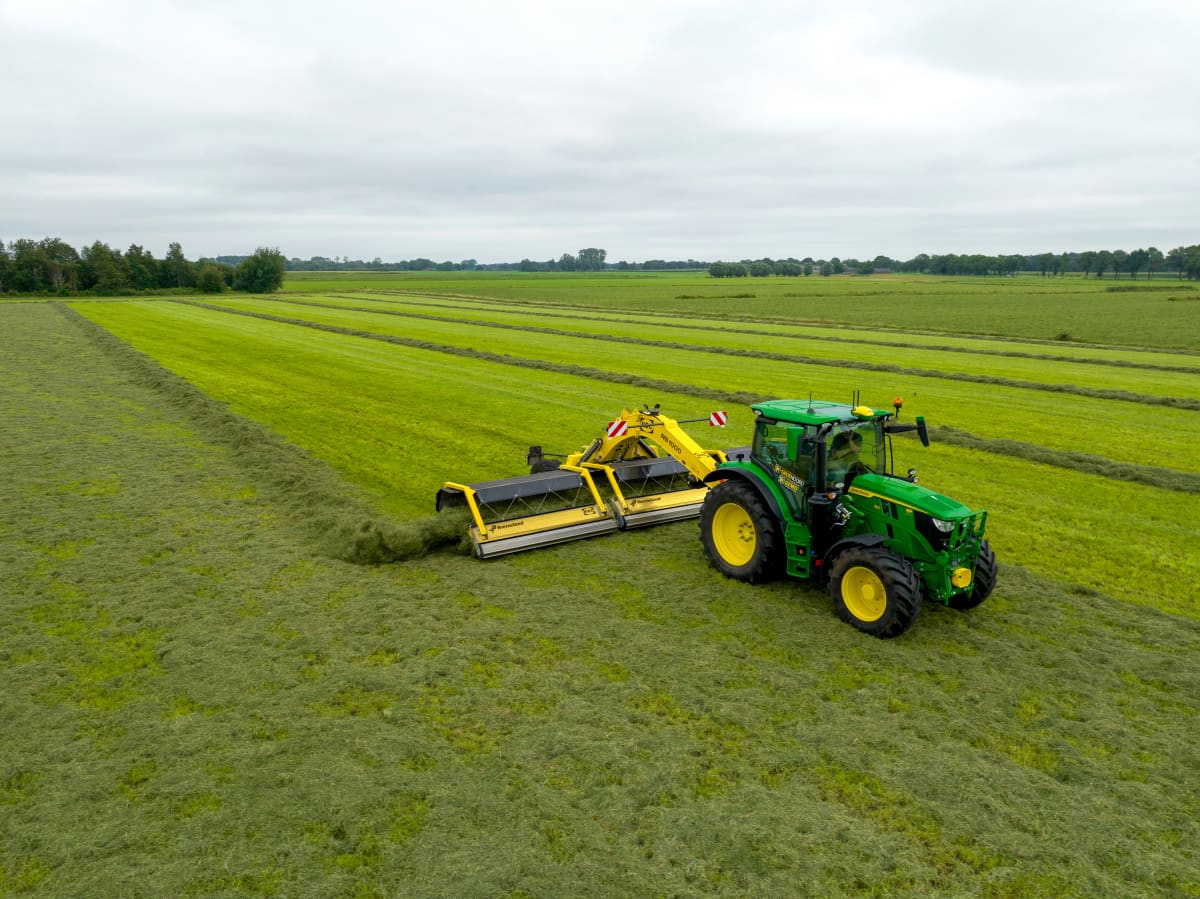

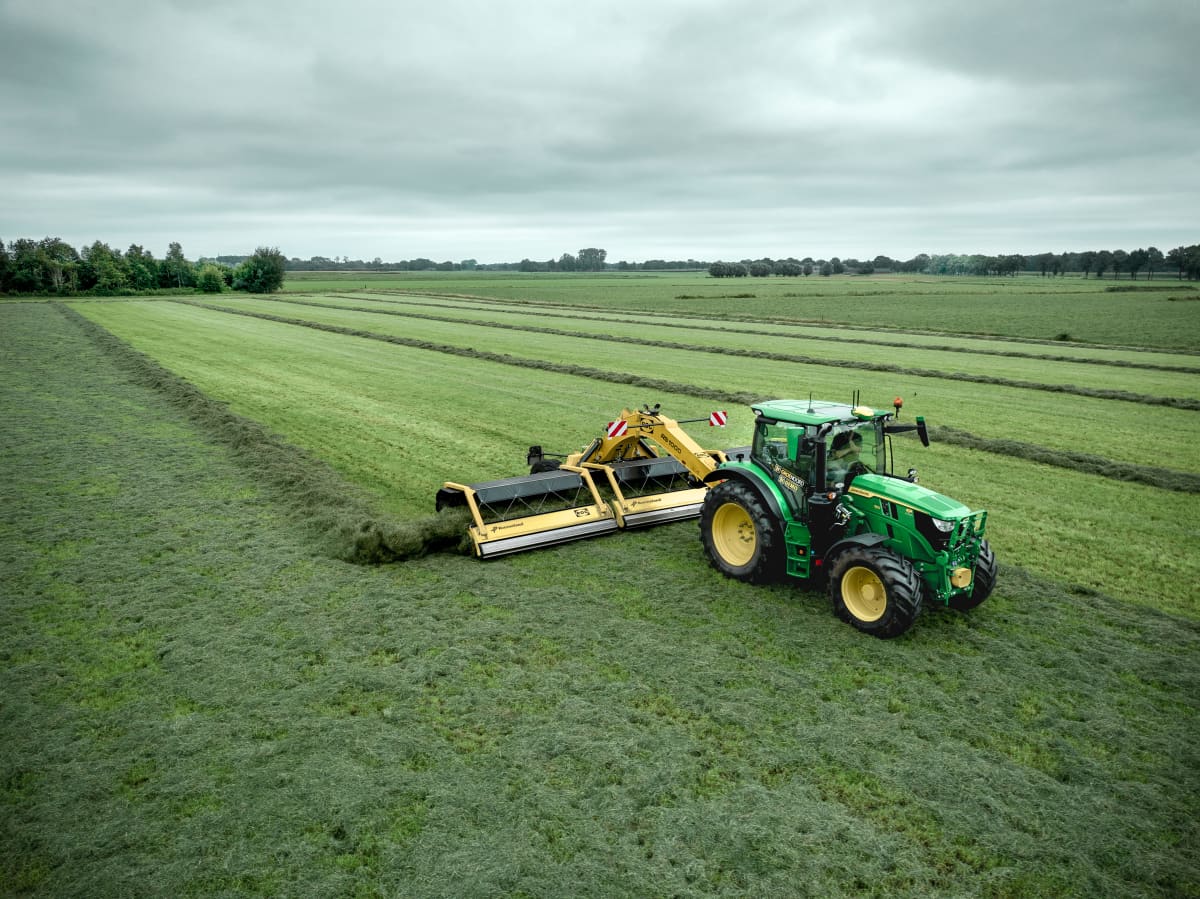

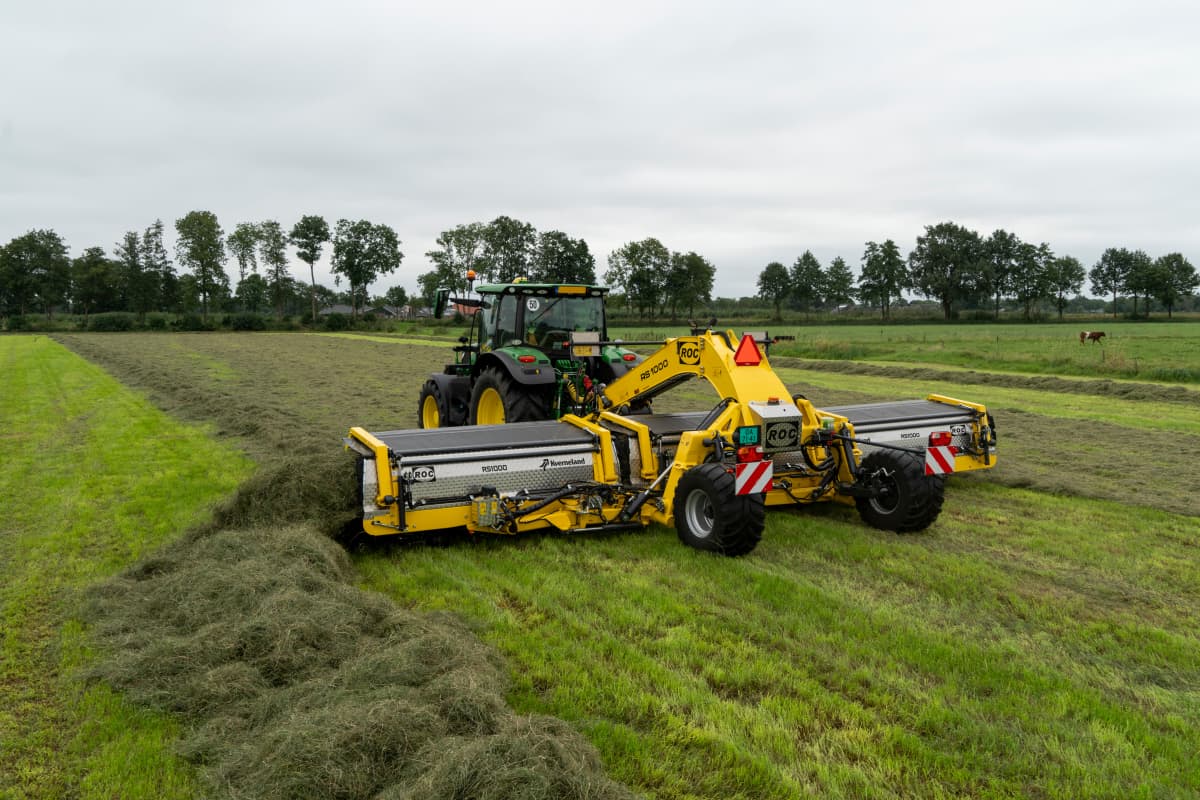

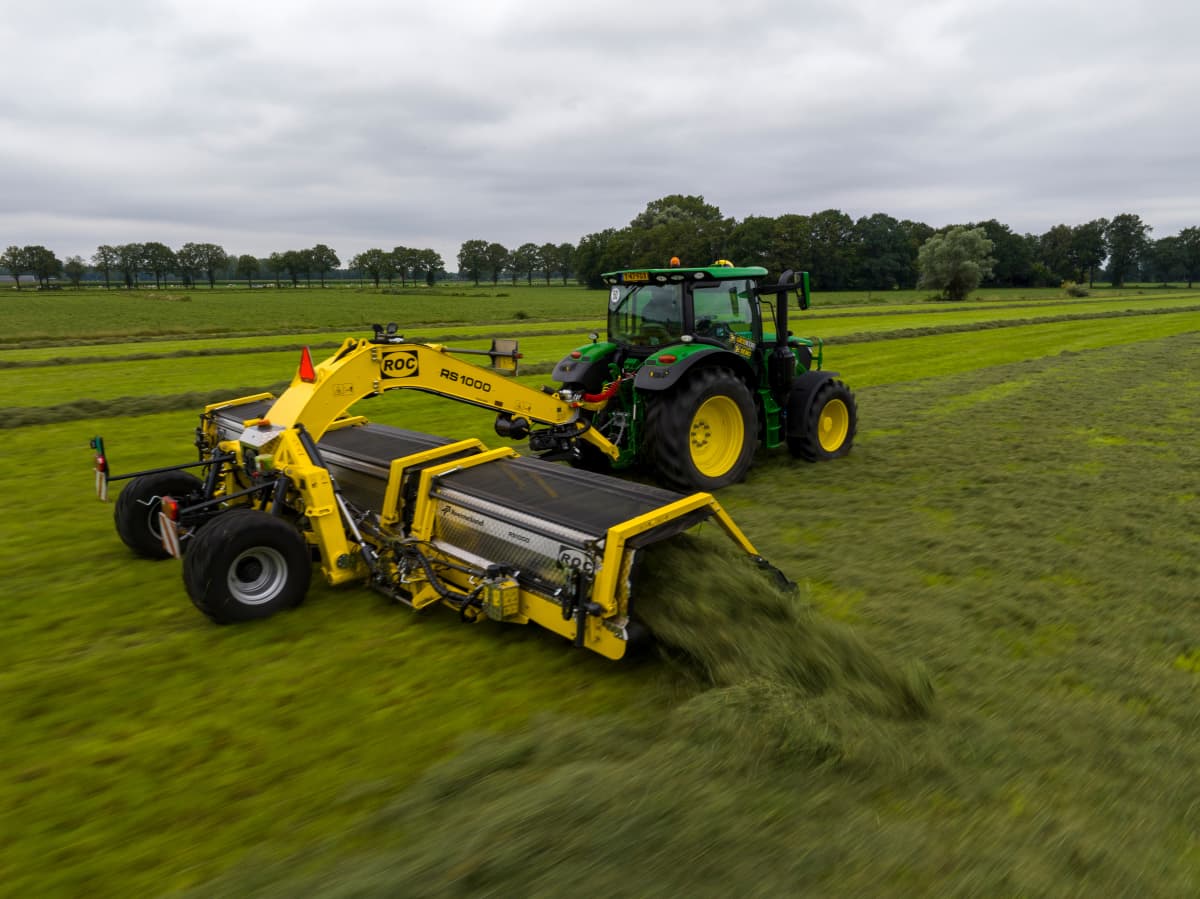

Den kontinuerliga pickup-strängläggaren Kverneland ROC RS 1000 är konstruerad för professionellt bruk med 10 m arbetsbredd och erbjuder ett revolutionerande strängläggningssystem med minimalt effektbehov.För att använda pickup-strängläggaren krävs en traktor på 100 hästkrafter. Detta resulterar i optimerade arbetstimmar, minskad energiförbrukning under skörden och en jämn, skonsam strängproduktion. Det avancerade pick-up-systemet har fördelar jämfört med traditionella Strängläggare. Det minskar höförlusten, förbättrar ensilagekvaliteten och använder sex rader med fjädrar för att lyfta grödan till ett transportband.med sin arbetsbredd på 10 m kan Kverneland ROC RS 1000 bilda strängar även efter skörden. Det är den enda pickup-strängläggaren som kan fällas helt eller delvis, vilket gör den lämplig för mindre arbetsbredder på grund av krav på skördevolym eller när det finns en befintlig sträng.
Höjdpunkter
- Bakmonterad 3-bands pickup-strängläggare med hög kapacitet och 10 m arbetsbredd - Sidoläggande.
- Unikt pickupsystem med 6 stänger för perfekt markanpassning och ren sammanfogning.
- En 250 mm vals nära pinnarna garanterar ett jämnt materialflöde för bästa möjliga strängläggning, även i korta grödor.
- Delvis eller helt Fällbar gör det möjligt att räfsa mindre strängar eller vända en befintlig sträng.
- Elektriskt system för höjdjustering
- Hög styrförmåga och manövrerbarhet
- Unikt hydropneumatiskt vägfjädringssystem för snabb och stabil vägtransport.
- Enkelt underhåll, kvalitet och byte av komponenter.

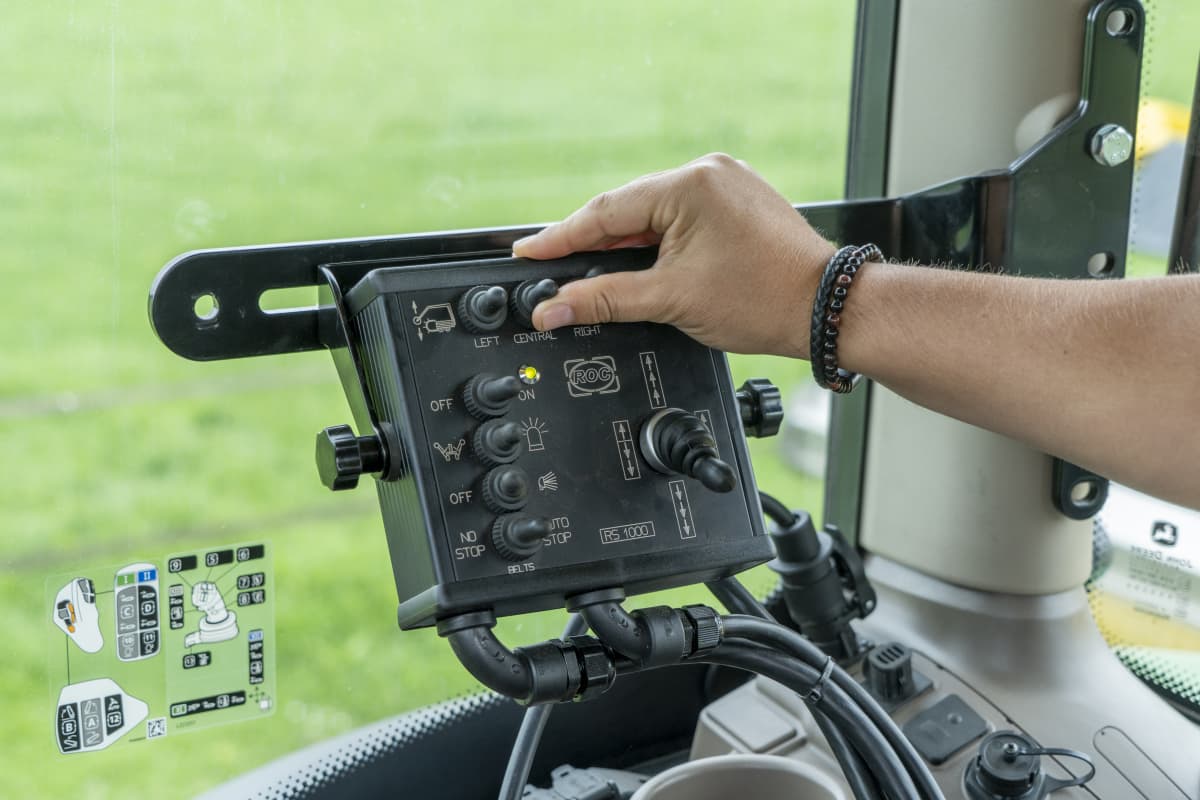

- En intuitiv kontrollenhet styr alla viktiga funktioner
Egenskaper
Egenskaper

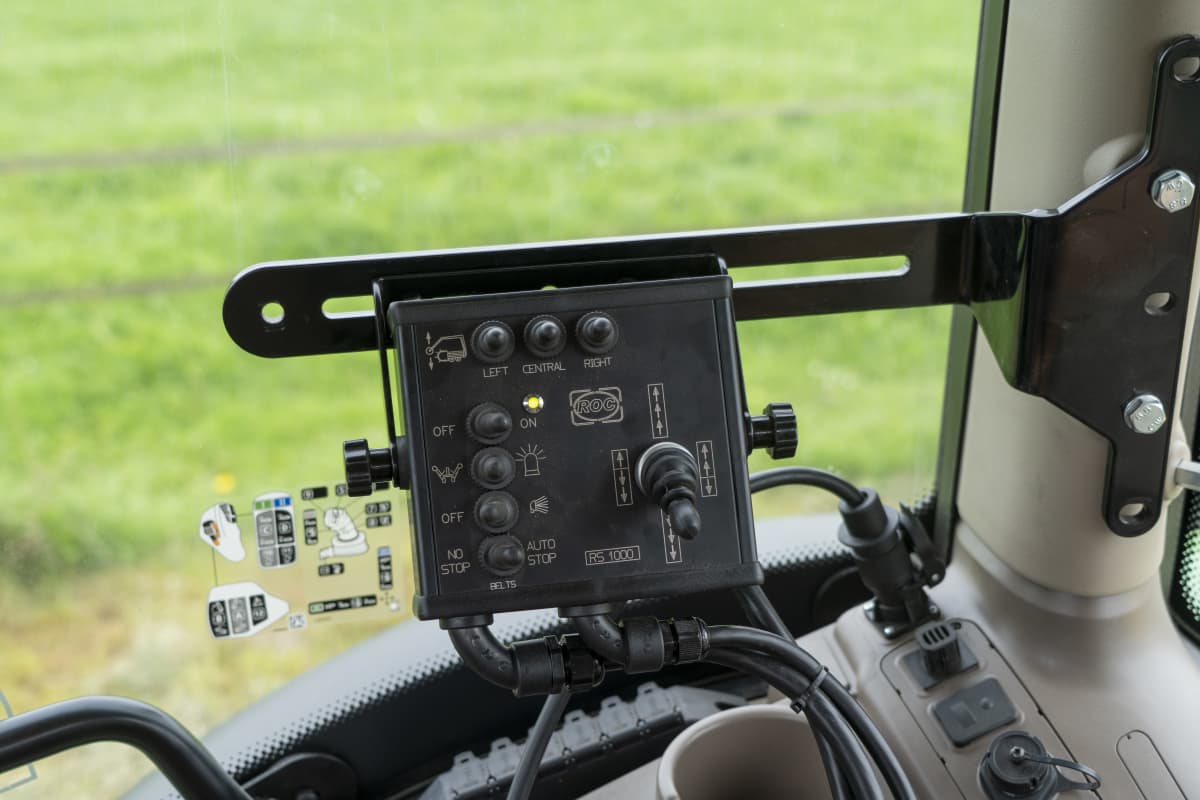

- An easy-to-use control panel manages all essential functions
- The terminal provides optional features such as belt auto-stop when lifting the machine to ensure a clean swath ending
- Large roller to operate in all crops
- The roller is in all positions hydraulic suspended
- Specially designed belt and pickup
- If the crops are dry, the roller can be lifted from the cabin to protect the leaves

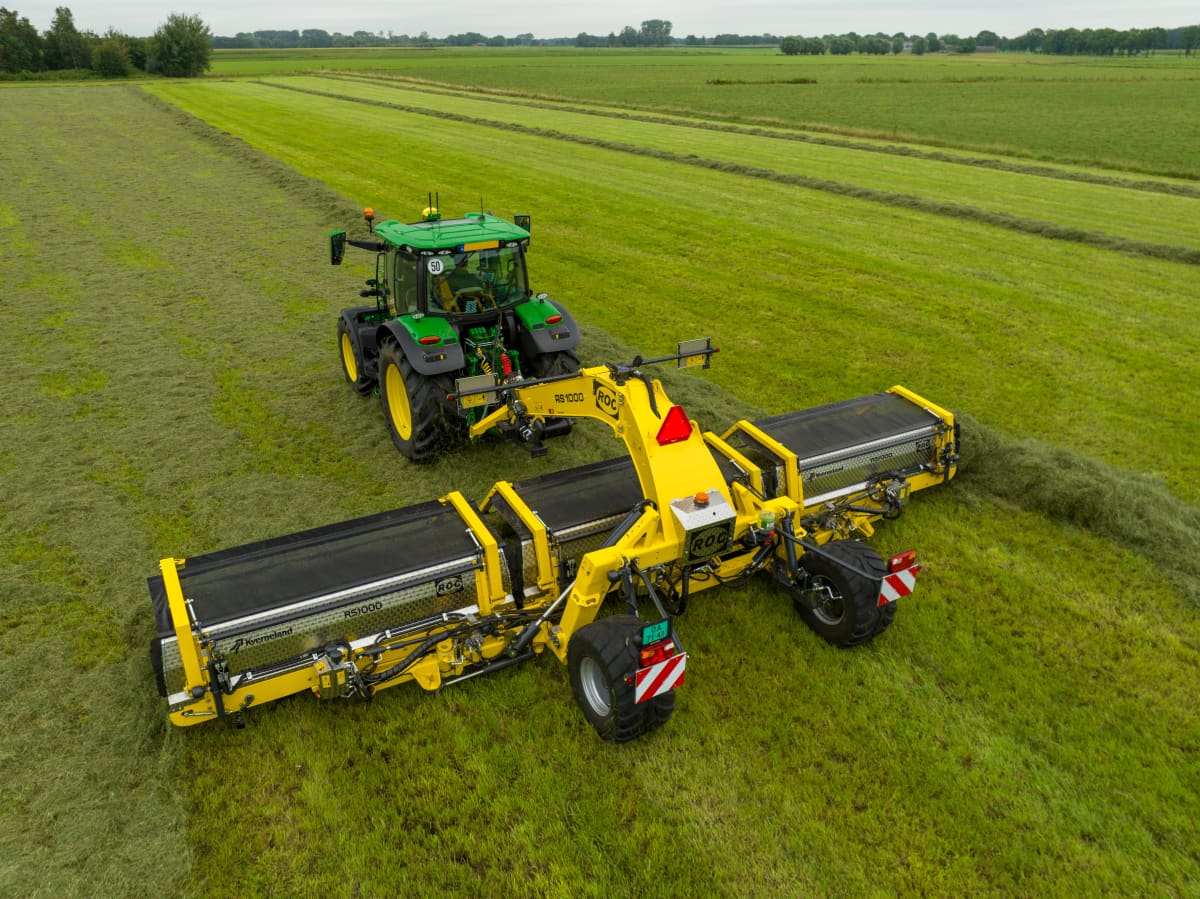

- A single belt system with three pick-ups

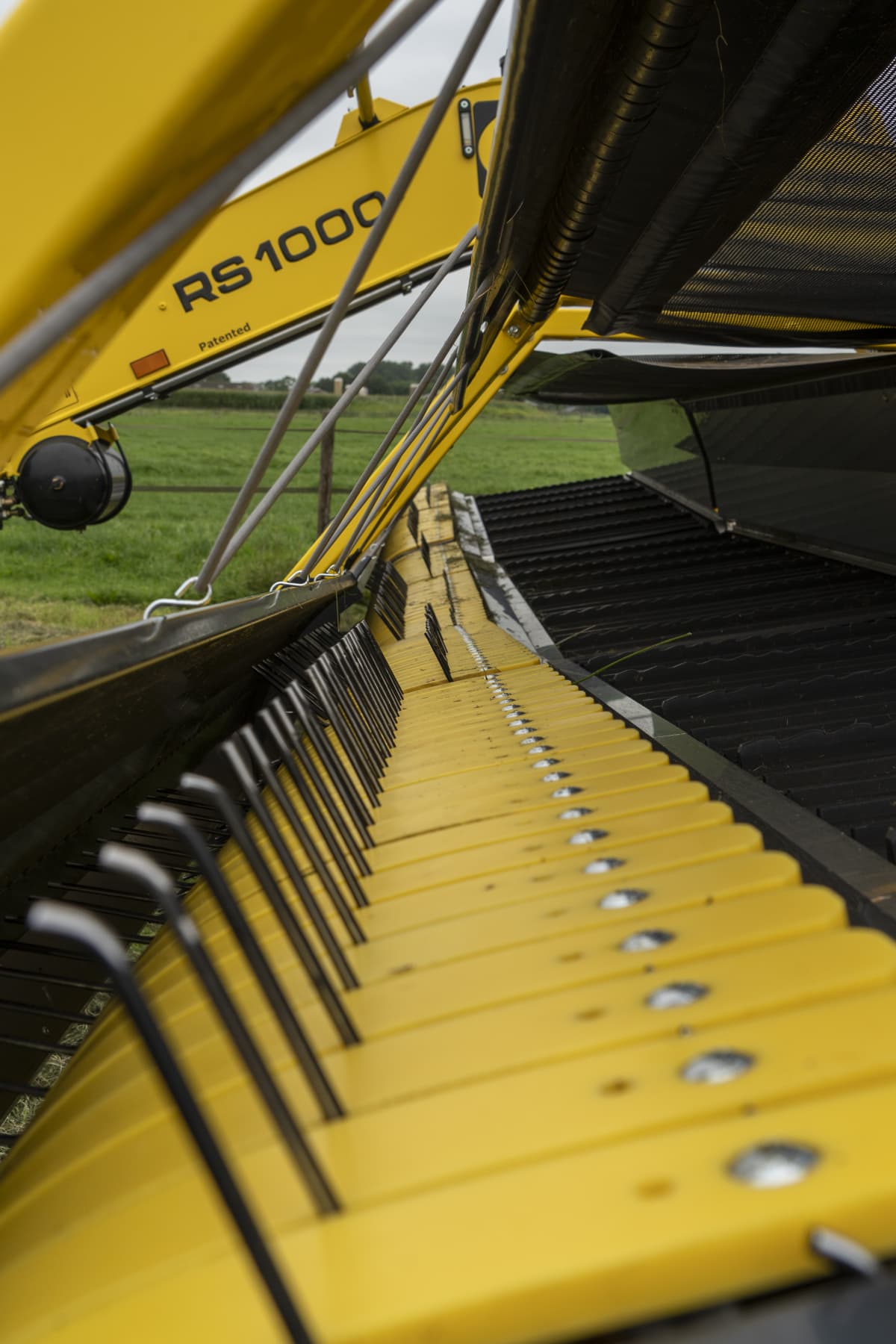

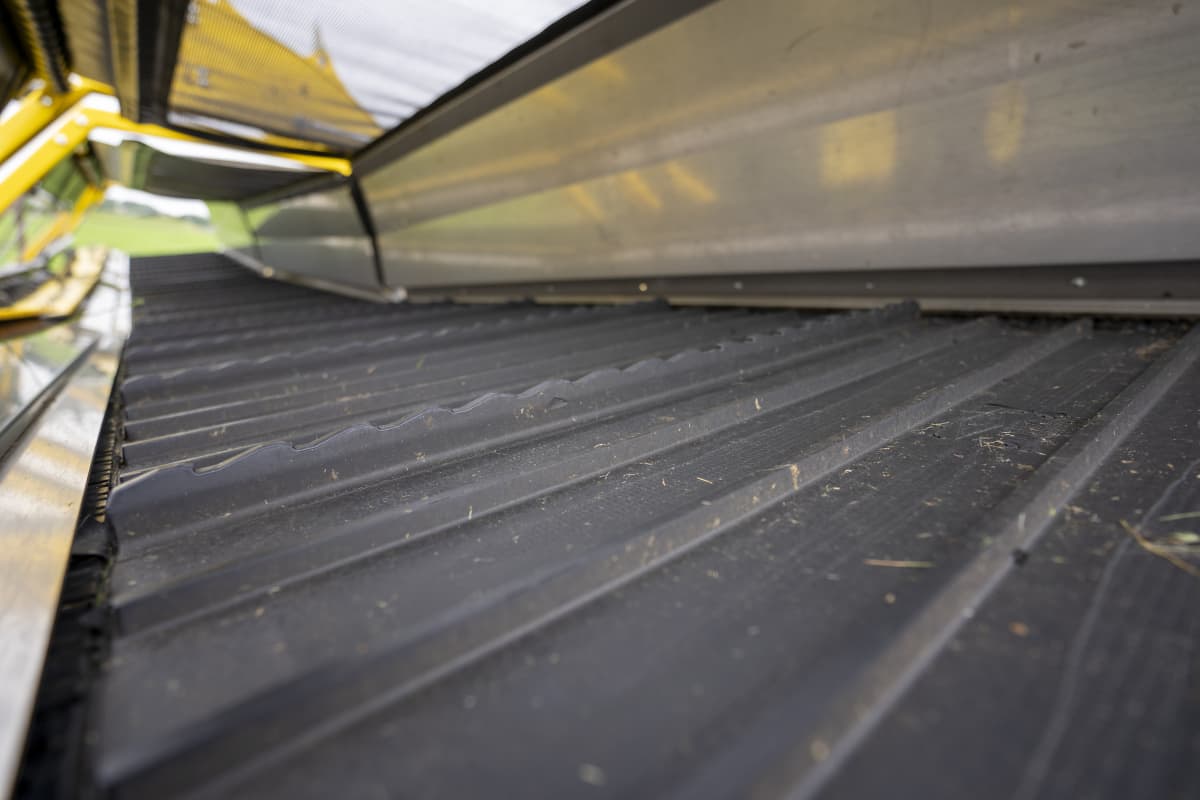

- Fiberglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops

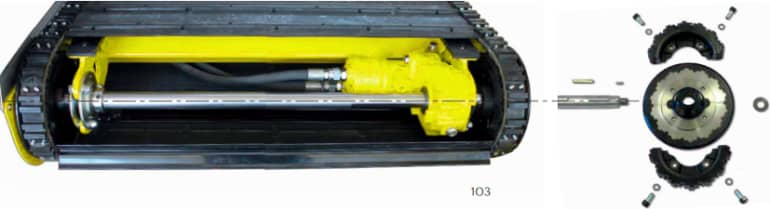

- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally

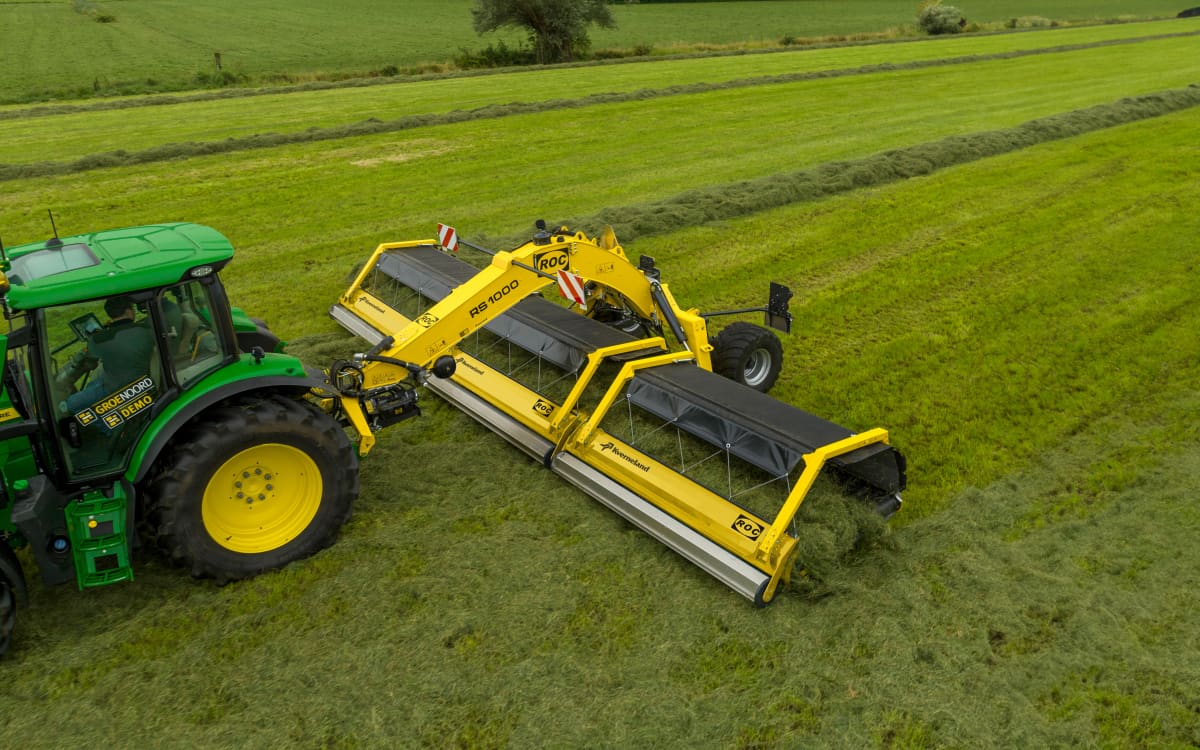

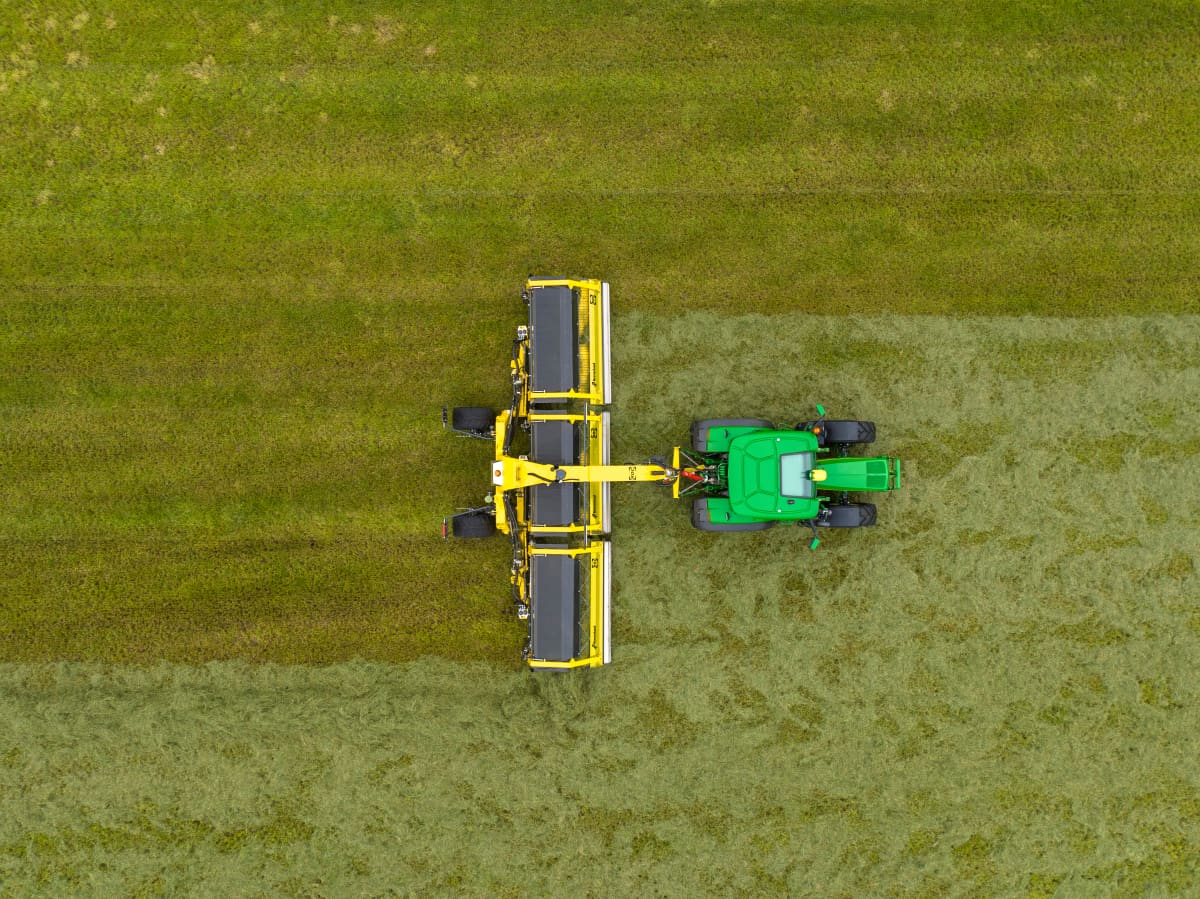

- A 10m working width, also ideal for forming swaths on an area where the crop has already been picked up
- The only merger in the market allowing to work partly or completely folded in case an existing swath needs to be turned or a smaller working width is due to crop volume required

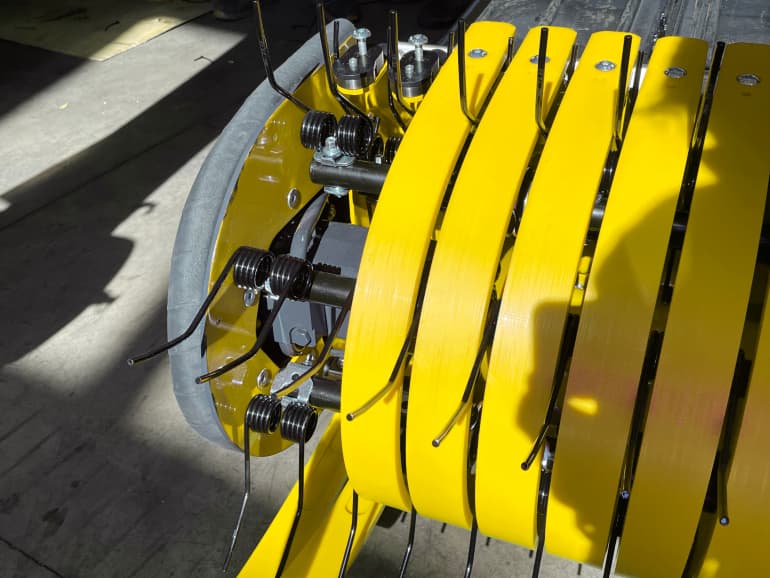

- Controlled pick-up with two cams and six tine bars
- For heavy crops such as silage and maize straw, it is recommended to use wide stripes
- Heavy-duty plastic strippers maintain shape when hitting rocks and their design prevents crop loss
- Even the shortest crop can be transported on the belt with the hydraulic adjustable roller suspended in all independent positions
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track, and tine bars without the need to disassemble the pick-up
- Electric height adjustment
- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts

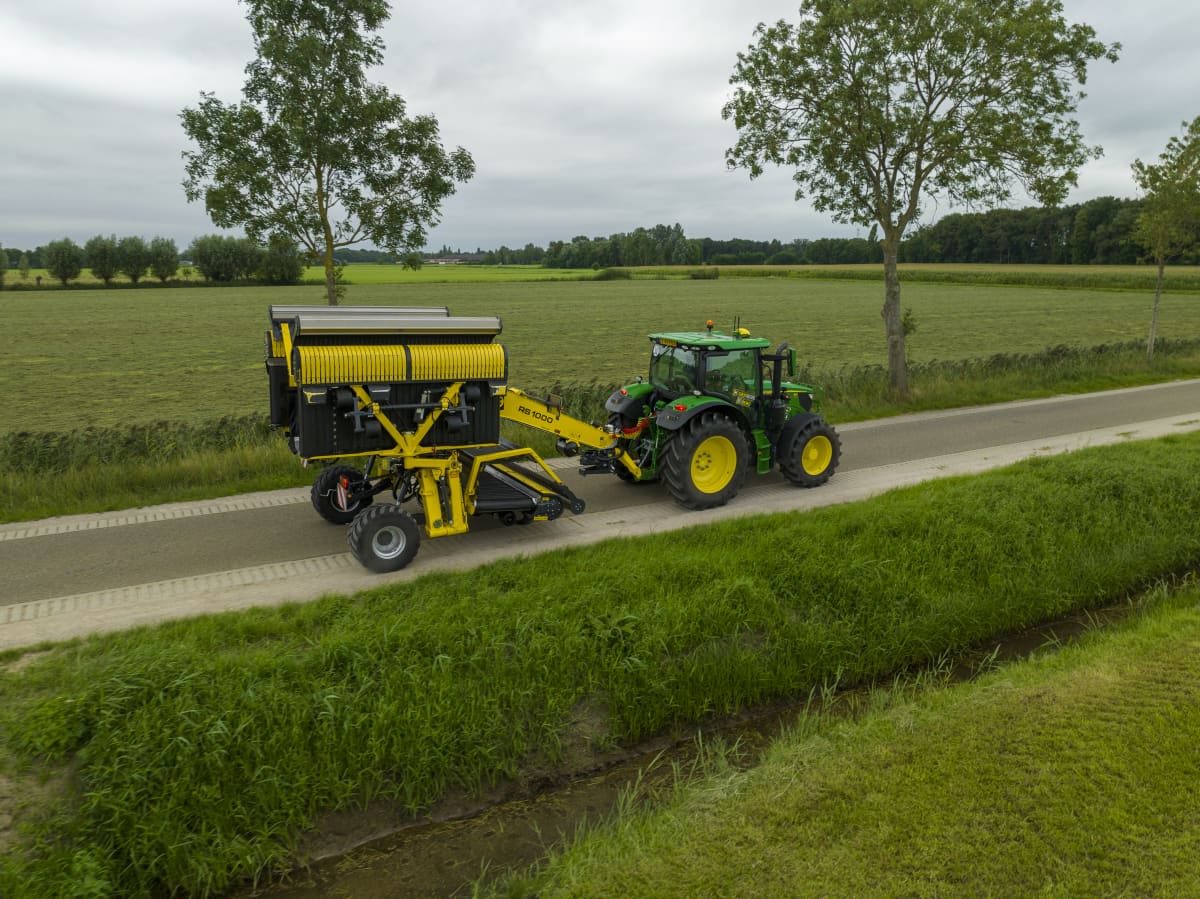

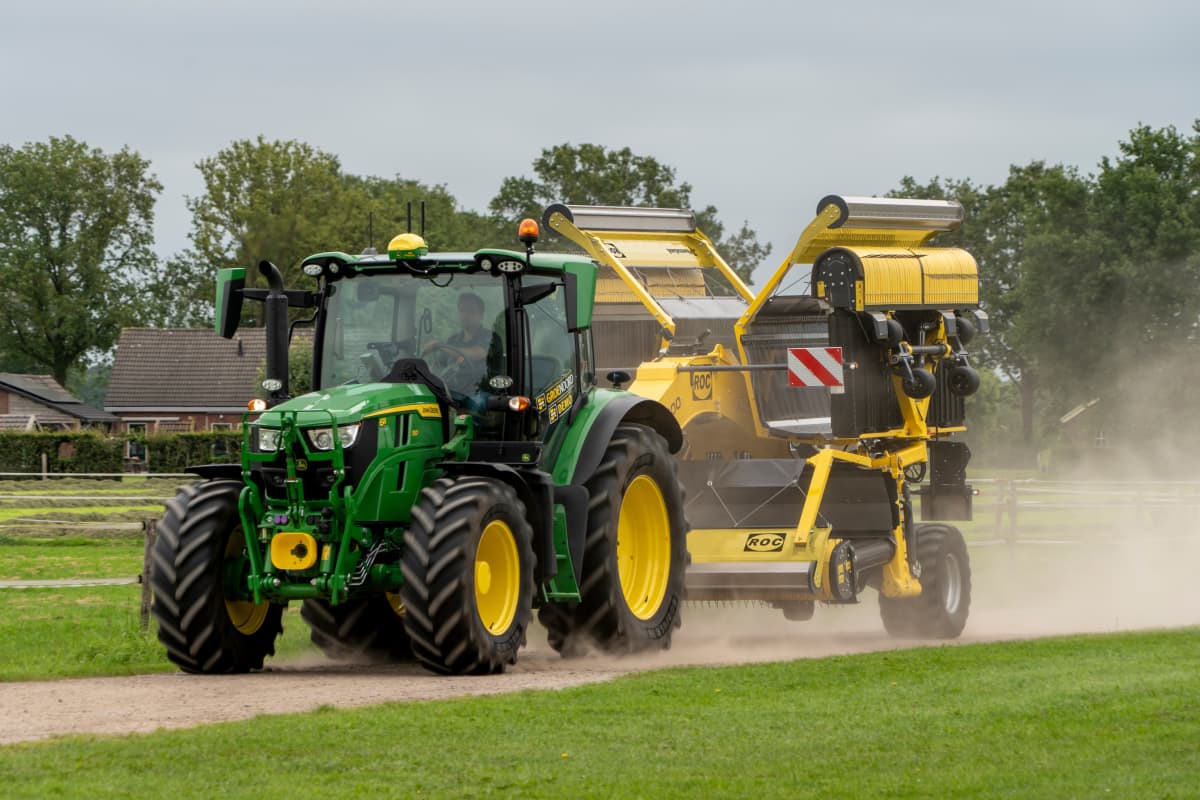

- The machine has a transport width of 3m, which allows it to fit on all roads

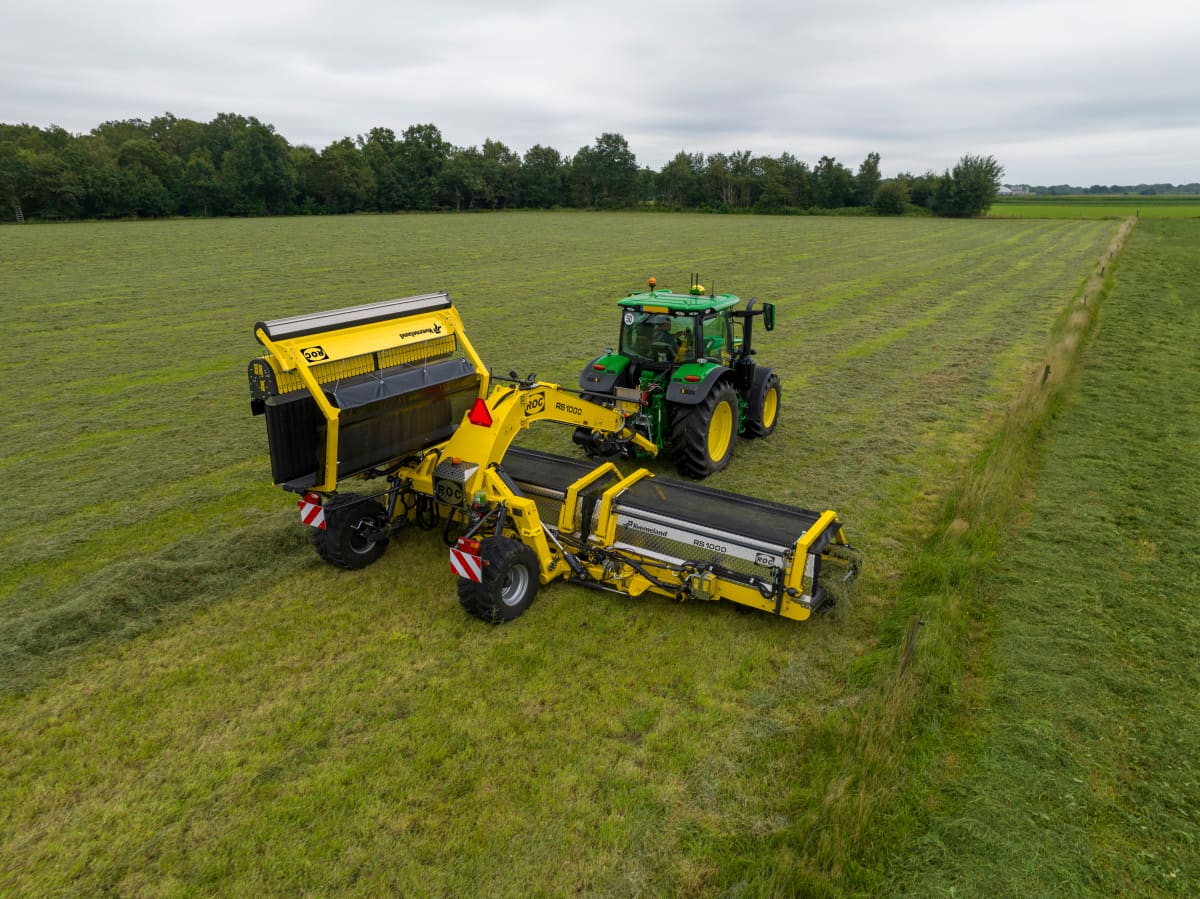

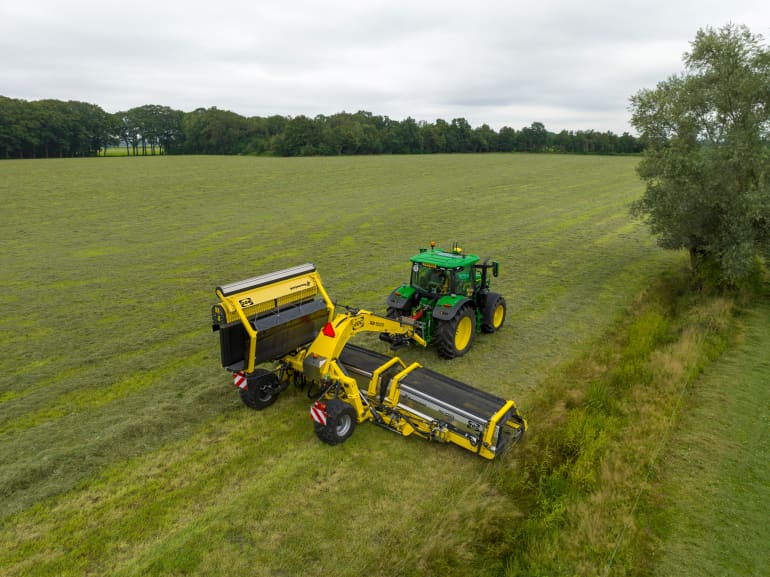

- It is the only machine on the market that can operate with one belt down while the other is in the transport position
- Large roller to operate in all crops
- The roller is in all positions hydraulic suspended
- Specially designed belt and pickup
- If the crops are dry, the roller can be lifted from the cabin to protect the leaves
- A 10m working width, also ideal for forming swaths on an area where the crop has already been picked up
- The only merger in the market allowing to work partly or completely folded in case an existing swath needs to be turned or a smaller working width is due to crop volume required
- A single belt system with three pick-ups
- Fiberglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- Controlled pick-up with two cams and six tine bars
- For heavy crops such as silage and maize straw, it is recommended to use wide stripes
- Heavy-duty plastic strippers maintain shape when hitting rocks and their design prevents crop loss
- Even the shortest crop can be transported on the belt with the hydraulic adjustable roller suspended in all independent positions
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track, and tine bars without the need to disassemble the pick-up
- Electric height adjustment
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts
- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system
- The machine has a transport width of 3m, which allows it to fit on all roads
- It is the only machine on the market that can operate with one belt down while the other is in the transport position
- An easy-to-use control panel manages all essential functions
- The terminal provides optional features such as belt auto-stop when lifting the machine to ensure a clean swath ending
Teknisk specifikation
Teknisk specifikation
Ladda ner broschyren
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Kverneland ROC RS 1000 | ||
|---|---|---|
| Arbetsbredd (m) | 10.0 | |
| Pickup bredd (m) | 8.9 | |
| Transportbredd (m) | 3.0 | |
| Band (antal) | 3 | |
| Effektbehov (hk) | 100 | |
| Vikt (kg) | 5200 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Ladda ner broschyren
|
Working width (m) |
Pick-up width (m) |
Transport width(m) |
Belts n. |
Power requirement (hp) |
Weight (kg) |
Kverneland ROC RS 1000 |
10.0 |
3x 2.95 |
3.0 |
3 |
100 |
5200 |
