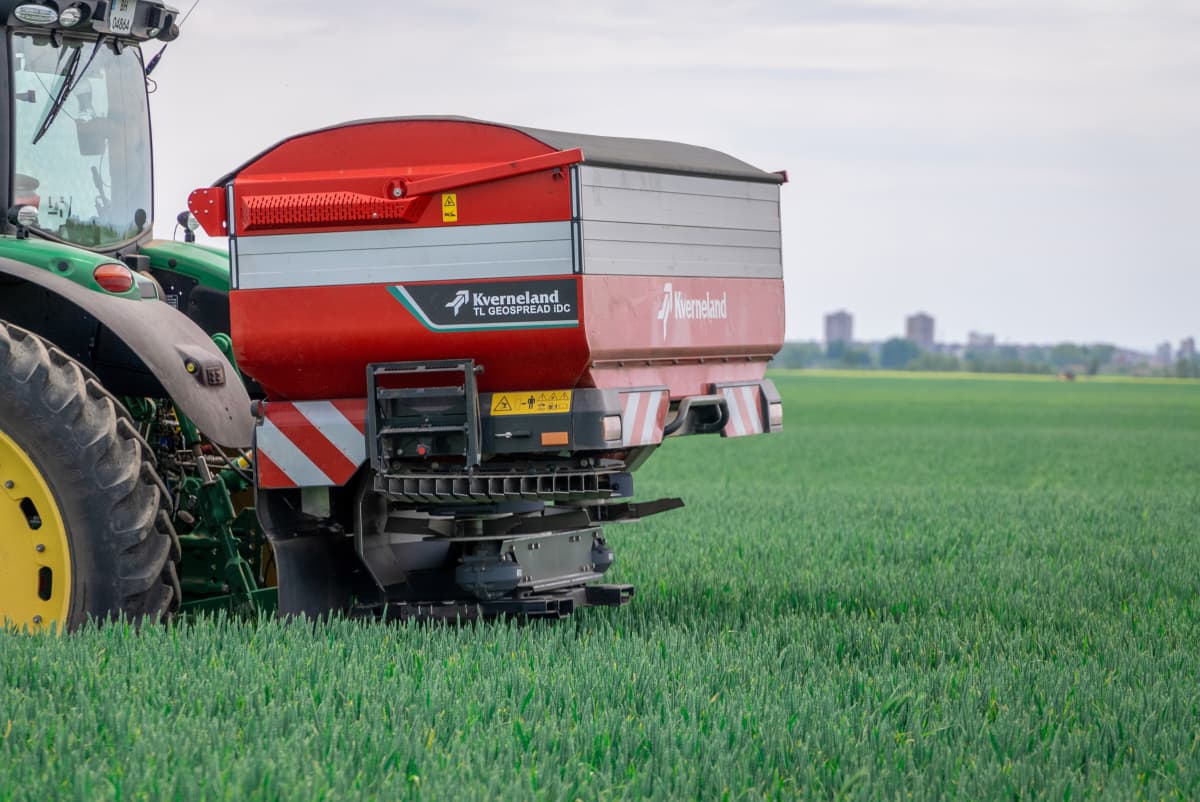

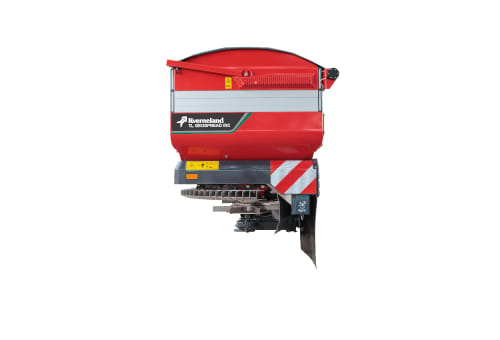

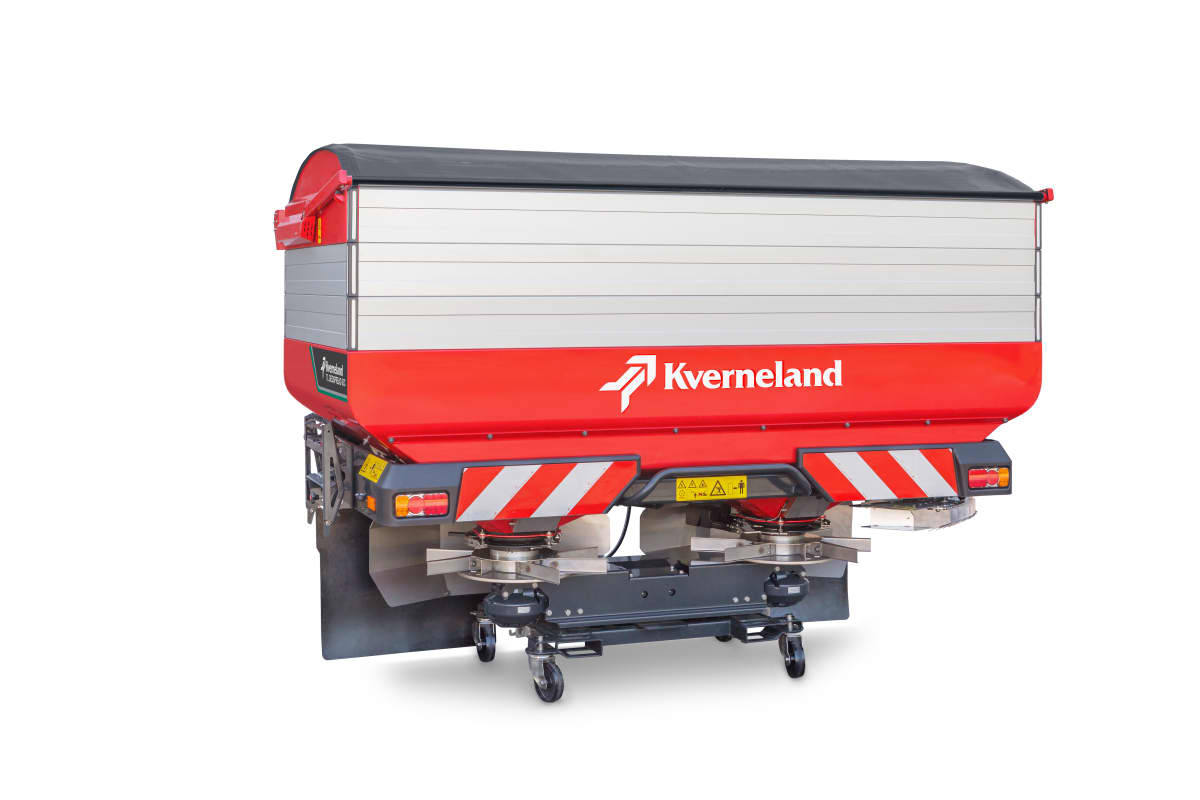

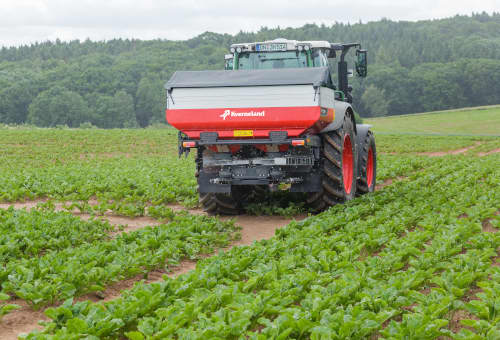

Kverneland Exacta TL GEOSPREAD iDC

• Continuous dynamic "online - calibration" with high frequency communication signal.

• Kvernelands unique reference sensor technology: all negative influences are automatically corrected and eliminated, ensuring utmost spreading accuracy even on hill sides. The Kverneland reference sensor gives you absolute accuracy, because every kilo counts!

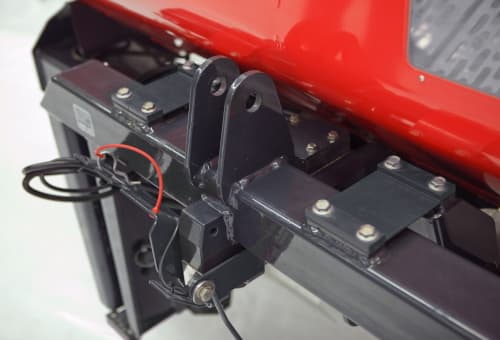

• Load cells in combination with the unique reference sensor:
  - Auto calibrating and continuous weighing system
  - Automatic correction on slopes
  - Automatic correction of shocks, even on rough terrain
  - Automatic speed related dosing system
  - No calibration test needed

• Highest accuracy in all conditions: even spreading quality guaranteed! Save costs and increase quality!

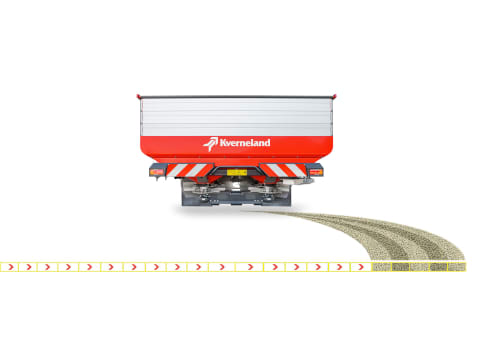

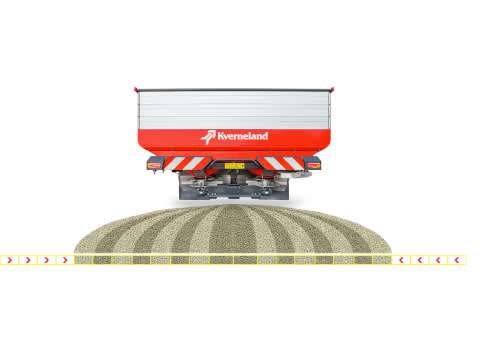

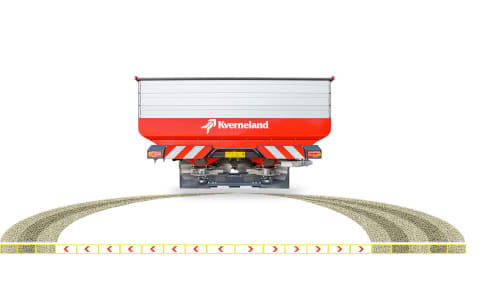

When running IsoMatch GEOCONTROL in addition to GEOSPREAD you can set the Exacta CL/TL/TLX GEOSPREAD (iDC) more accurately. The working width will automatically be adjusted to suit the overlap and coverage using a GPS positioning system. For example, when driving in a wedged or irregular shaped field, GEOSPREAD will start to decrease the working width step by step. GEOSPREAD is using the section control function of the IsoMatch GEOCONTROL software which is in the IsoMatch Tellus PRO or IsoMatch Tellus GO+ terminal. The spreader working width is divided into a minimum of 1 metre sections (max. 45 sections on TLX GEOSPREAD (iDC), max. 54 sections on TL GEOSPREAD (iDC) and max. 33 sections on CL GEOSPREAD). Not only the spreading width is adjusted, the application rate (kg/min) is also adjusted automatically to match the revised spreading width. This unique combination of working width and application rate adjustment makes the GEOSPREAD system extremely accurate, with minimum influence on the coefficient of variation of the spread pattern .

The Advantages:

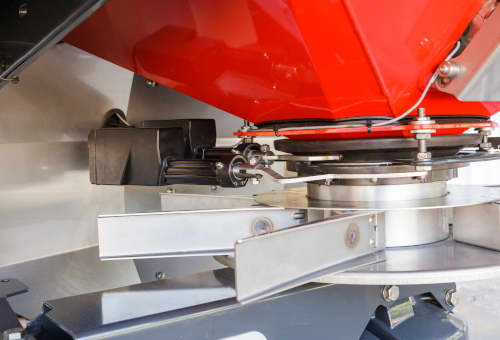

• Quick and accurate spreading, due to the actuators being directly connected to the discharge point. No linkages.
• Automatic, in-field, disc RPM management to maintain a perfect spreading pattern and optimise border spreading in combination with the ExactLine.
• Section control with 1 metre sections (depending on the terminal functionality)
• Easy operation; no need to step off the tractor to adjust the working width
• 100% ISOBUS compatible for easy operation
• Automatic start/stop with GPS on headlands possible

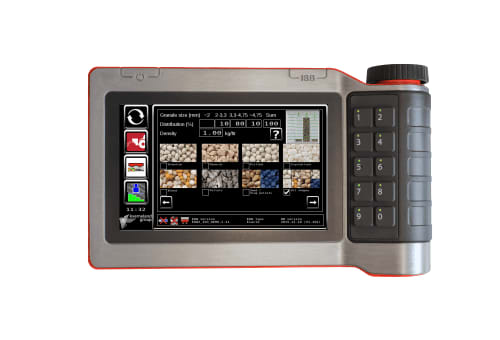

With the AutosetApp you have always the most up to date settings for your weighing spreader available. There are two ways to make use of the AutosetApp.

Exacta-CL/TL/TLX GEOSPREAD in combination with Kverneland Sync

Via the AutosetApp functionality within the Kverneland SpreadApp you can set-up your GEOSPREAD spreader in combination with a Kverneland Sync, via your mobile device.

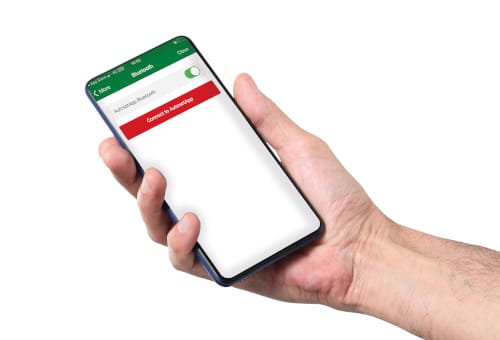

Through the Bluetooth connection, operators can seamlessly connect the GEOSPREAD spreader to a mobile device, such as smartphone or tablet, using the AutosetApp functionality. This allows for the efficient transfer of spreader settings and presets directly from the mobile device to the spreader.

The benefits of this connectivity include error-free storage and transfer of spreading jobs. Additionally, the integrated filling calculator provides an exact measurement of the fertiliser needed to complete the spreading job, while real-time weight updates in the hopper are displayed directly on the App during filling, improving efficiency and accuracy.

Exacta-CL EW/CL W PRO/TL and all GEOSPREAD models without Kverneland Sync

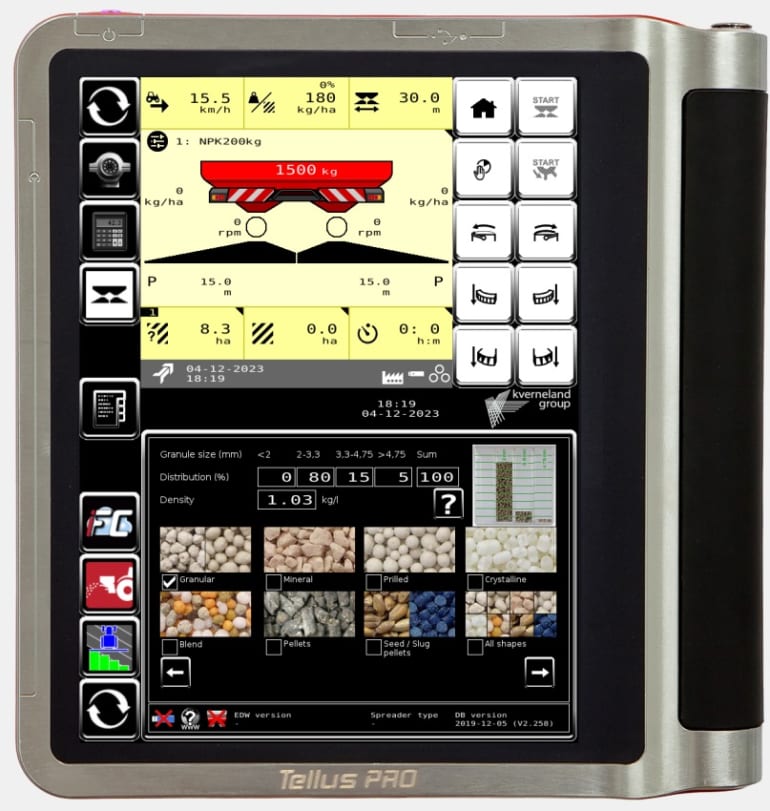

The AutosetApp is an App (software application) that is also available on the IsoMatch Tellus PRO or IsoMatch Tellus GO+ terminal. The AutosetApp is standard integrated into the IsoMatch GEOCONTROL software. This App connects the terminal directly with the GEOSPREAD weighing spreader and will automatically adjust the spreader according to the settings entered into the App. The AutosetApp will also work in combination with the CL-EW, W PRO and TL, with the exception being for those spreaders the discharge point (letter setting) still needs to be adjusted manually on the spreader itself.

• Kverneland offers the ExactLine system or manual/hydraulic border spreading plate for border spreading. The ExactLine can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the CL GEOSPREAD, HL, TL TLX GEOSPREAD (iDC) models the ExactLine can even be fitted on the left- and right-hand side of the spreader.
• With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.
• With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.
• The Border Spreading Indicator (BSI) on the standard weighing spreaders (Exacta CL EW, Exacta CL W PRO, Exacta TL) indicates which border spreading device is active. For the GEOSPREAD machines this is integrated in the electronics and the active device will be displayed on the control terminal in the cab.

For easy and cost effective spreading

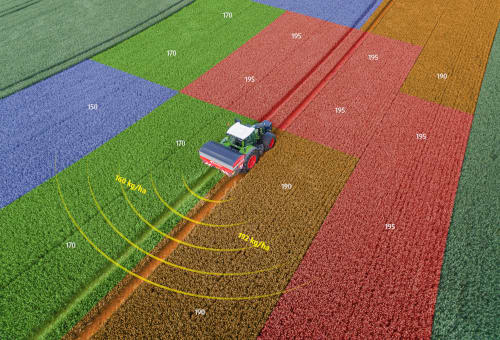

MULTIRATE (Variable Rate Application) applies multiple rates within a working width.

In order to spread the right amount of fertiliser at a specific place in a field there is a need to have a different rate within the working width. Depending on the field variation and the size of the grid of the variable application map, input of 2, 4, 6 or 8 rate sections can be used. This means a more accurate application of nutrients to have a better nutrient efficiency, better yield and reduce costs.

With a Kverneland GEOSPREAD spreader you invest in 100% ISOBUS compatibility for easy plug and play with the IsoMatch Tellus PRO or any other AEF certified terminal. In just some steps with this combination you are ready to use MULTIRATE. You have to convert a satellite or soil map into an ISO-XML file. Download the Variable Rate Map into the terminal and you are ready to spread with MULTIRATE with 2 up to 8 rates.

Högkvalitativa spridarvingar är det bästa valet för att få ut maximal prestanda och effekt av din arbetsdag.

Ökad användning av mycket hårda gödselmedel med vassa kanter vid höga flöden förkortar vingarnas livslängd. Slitna spridarvingar skapar ett opålitligt spridningsmönster, vilket orsakar ojämn näringsfördelning och potentiell skördeförlust.

XHD slitstarka spridarvingar står för en lång livslängd och pålitlig maskin. Ytbeläggningen på lyftvingarna introducerades för detta ändamål.

XHD-lyftvingarna är tillverkade av standard Duplex rostfritt stål, behandlat med ett ytskikt av kromkarbid för att öka slitstyrkan. Kromkarbid är ett extremt hårt och korrosionsbeständigt material. Det upphettas till mycket höga temperaturer och sprutas på skoveln för att skapa ett skyddande skikt. Kromkarbiden ökar slitstyrkan, men har ingen inverkan på spridningsmönstret. XHD-lyftvingarna ger ett högkvalitativt spridningsmönster och hållbarhet för lantbrukaren.
