f-drill compact / maxi
Med flexibilitet redo för framtiden

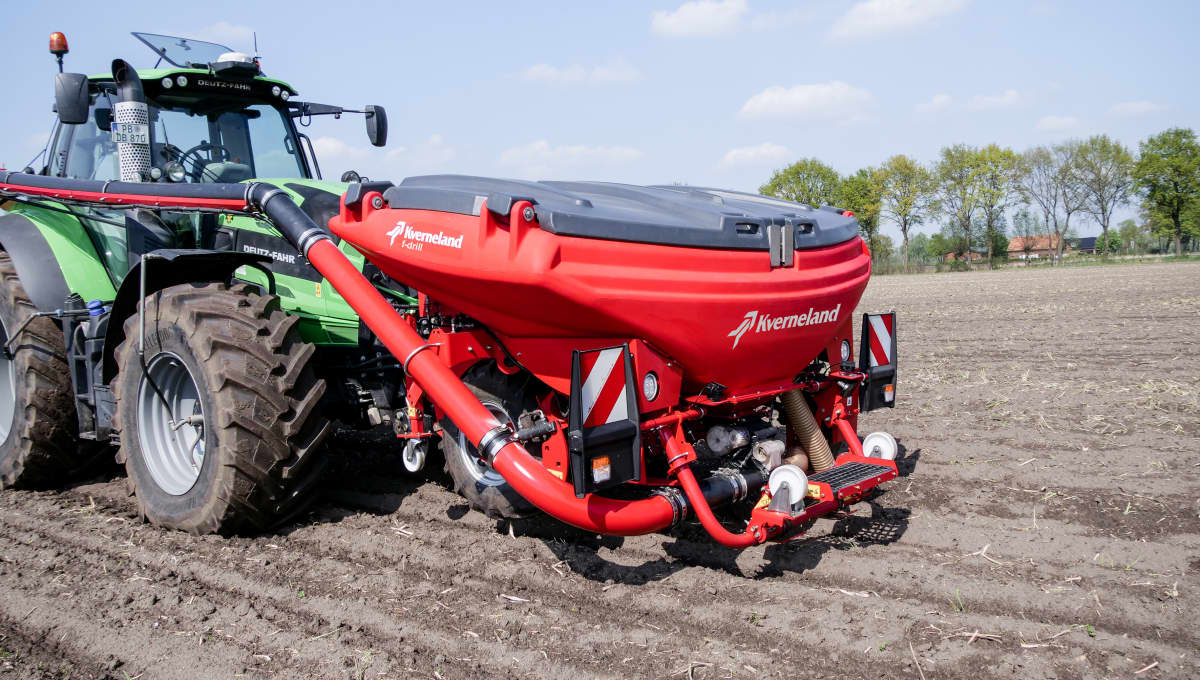

Den frontmonterade behållaren på Kverneland f-drill säkerställer en jämn viktfördelning över hela maskinen och ger maximal balans. Den frontmonterade behållaren förbättrar både säkerheten, manövrerbarheten och ger en obegränsad överblick över maskinens uppställning.
Höjdpunkter
- Utmost flexibility – for all kind of farming systems
- Safe manoeuvrability due to even weight distribution
- Reduced soil compaction
- Long lifetime of the corrosion resistant plastic hopper
- Precise and intelligent seed application
- Reduced set-up time due to large hopper capacity
Beskrivning
f-drill har utformats för att ge lantbrukare och entreprenörer största möjliga flexibilitet eftersom den kan anpassas till alla typer av odlingssystem. Modellserien f-drill är redo att kombineras med olika redskap som såmaskiner eller kultivatorer och kan användas med olika arbetsbredder.
Tack vare den tydliga designen och den höga nivån av inbyggd intelligent teknik erbjuder f-drill maximal användarvänlighet, från uppställning och påfyllning till balanserad transport med god överblick både fram och bak på traktorn.
Sådd och gödsling, sådd och kultivering eller gödsling och kultivering som Striptill i en överfart är möjligt, liksom kombinerad användning av utsäde och följeslagare med de tre modellerna i två storlekar.
f-drill compact/f-drill maxi: Standardmodellen är utrustad med en ELDOS-doseringsenhet för en typ av utsäde eller gödningsmedel.
f-drill compact duo /f-drill maxi duo: duomodellen är utrustad med två ELDOS-enheter för högre doseringsmängder av en typ av utsäde eller gödselmedel.
f-drill maxi plus: Plus-modellen är utrustad med två ELDOS och behållaren är uppdelad i två sektioner för kombinerad spridning av två typer av material. Förhållandet mellan behållarens delning är 60:40.
Hållbara jordbruksmetoder för frisk jord och hög avkastning
Jorden - din mest värdefulla tillgång
En sund markstruktur är grunden för ett hållbart jordbruk. En väl förberedd och jämn såbädd säkerställer en jämn uppkomst av grödan och en optimal växtutveckling. För att skydda markkvaliteten bör lantbrukarna fokusera på färre överfarter, rätt viktbalans och rätt tidpunkt för att förhindra markpackning och hjulskador.
Stödja biologisk mångfald med fleråriga grödor
Metoder som flergrödor och kompletterande odling spelar en viktig roll för att främja den biologiska mångfalden och skydda jorden från erosion. Genom att kombinera olika grödor på samma fält kan jordbrukarna bekämpa ogräs, stabilisera jorden och förbättra ekosystemets allmänna hälsa.
Precisionsgödsling för hållbar tillväxt
En exakt gödsling vid rätt tidpunkt är avgörande för att grödorna ska må bra och för att jordbruket ska vara långsiktigt hållbart. Effektiv användning av näringsämnen främjar en sund rotning, minskar urlakningen och ökar humushalten och lagringskapaciteten för koldioxid, vilket stärker både markens bördighet och motståndskraften mot klimatförändringar.
Innovativ utrustning för effektivitet och lång livslängd
Modern jordbruksutrustning som Kvernelands f-drill stöder hållbarhet genom att göra det möjligt att kombinera flera uppgifter i ett svep, vilket sparar både tid och bränsle samtidigt som jorden skyddas. Den lätta behållardesignen, tillverkad av slitstark, korrosionsbeständig plast, säkerställer hög kapacitet, lång livslängd och optimal viktfördelning för minimal markpåverkan.
Egenskaper
Egenskaper
Precise seed metering, automatic and safe
- ELDOS is the electric driven metering device for Kverneland pneumatic seed drills.
- ELDOS is steered by Kverneland e-com software, which is fully ISOBUS compatible.
- By the automatic section control, GEOCONTROL, the metering device stopps/starts automatically. Double and/or missed seeding on headlands or odd-shaped fields is avoided. Special sensors ensure complete functionality from the tractor cab.

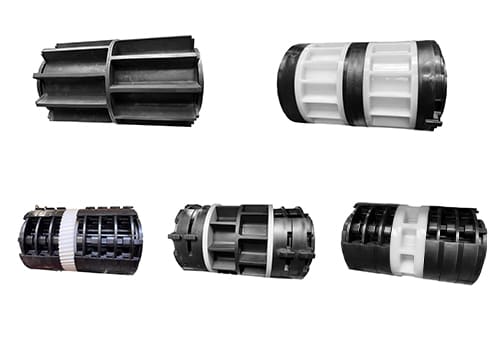

- Calibration is automatic, and a range of interchangeable seed metering rotors can be swapped - even when the hopper is full - without the need for tools. Sensors monitor the metering rotors, and give a warning if the wrong metering rotors are accidentally installed.
- The f-drill is available with one or two ELDOS metering units. Two ELDOS are possible if larger quantities have to be applied as with the duo models.
- If the hopper is divided as plus version, there are also two ELDOS available to have the possibility to apply either two different seeds or seeds and fertiliser in one pass.
- The entire system is based on the Venturi principle. No additional effort is required to keep the system tight. The Venturi system guarantees the accuracy of the desired dosage and also the adherence to higher application rates.

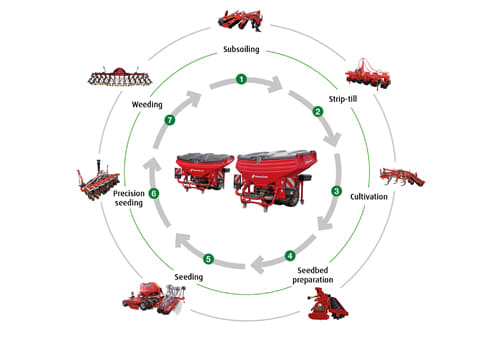

For all kind of combinations and applications in various working widths
- A wide range of fine to larger seeds and fertiliser can be applied.
- It allows seeding and fertilising in one pass
- It allows the combined application of seeds and companion crops
- In spring the Kverneland f-drill can be used as a fertiliser hopper with the Optima F or with the Kultistrip for strip tillage. When joined with a power harrow drill combination such as the Kverneland e-drill, the f-drill can be used as an additional seed hopper for sowing companion or spring crops.
- In summer and autumn, the hopper can be combined with the power harrow range and coulter bars to have a compact combination from 3.0 up to 6.0m working width.
Modern design for low maintenance and long lifetime
- The f-drill made of plastic has a modern design which ensures low maintenance and long lifetime also when working with corrosive material such as fertiliser.
- The f-drill front hoppers are available in two sizes and three versions.
- The f-drill compact has a capacity of 1600 litres and the f-drill maxi up to 2200 litres.
- The standard version is equipped with one ELDOS metering unit. Either seeds or fertiliser can be filled into the hopper.
- Higher application rates can be achieved by the duo version, as two ELDOS units distribute two times up to 400kg/ha of one type of fertiliser or seeds.
- The hopper of the plus model is divided into two sections. This allows either two types of seeds or one type of seeds and fertiliser to be applied in one pass. The ratio of the hopper split is 60:40.
Easy filling and lifting
- The large hopper capacity of up to 2,200 litres reduces the set-up time.
- The hopper covers open sidewise and lock automatically supported by gas cylinder.
- The hopper made from plastic can easily be filled using e.g. big bags, a front loader or a telescopic handler.
- The parking wheels are available for quick and easy storage. The f-drill can easily be hitched. There is no PTO shaft needed.
- Pipes installed on the side of the cab convey the seed or fertiliser to the coulters by an air stream.
Increased safety and manoeuvrability
- The dissolved structure of the Kverneland f-drill ensures an even weight distribution across the machine arrangement, giving the tractor the best balance at maximum capacity.
- This improves both safety and manoeuvrability whilst at the same time giving the driver an unrestricted view over the entire machine set-up.
- The wheel packer with lifting function relieves the load on the front axle while maintaining good steering ability.
- The packer is self-steering and pull-attached which reduce power requirement and fuel consumption. In addition it also avoids the bulldozing effect.
- Especially in wet periods, the dissolved design with its better weight distribution reduces the impact on the soil structure
Teknisk specifikation
Teknisk specifikation
Ladda ner broschyren| Modell | Kverneland f-drill kompakt | Kverneland f-drill maxi | Kverneland f-drill kompakt duo | Kverneland f-drill maxi duo | Kverneland f-drill compact plus | Kverneland f-drill maxi duo | |
|---|---|---|---|---|---|---|---|
| Typ av maskin | modulär monterad | modulär borr | Buren modulärt | Buren modulärt | Buren modulärt | Buren modulärt | |
| Behållarens kapacitet (l) | 1,600 | 2,200 | 1,600 | 2,200 | 1,600 (60:40) | 2,200 (60:40) | |
| Maskinbredd (m) | 2.75 | 2.75 | 2.75 | 2.75 | 2.75 | 2.75 | |
| Vikt basmaskin (kg) | 658 | 678 | 732 | 752 | 747 | 767 | |
| Vikt Tillval Tiltpackare (kg) | 361 | 361 | 361 | 361 | 361 | 361 | |
| Ballastvikter 100 - 600 kg (steg 2 x 50 kg) | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Min. effektbehov (HP/Kw) | 106/80 | 173/130 | 106/80 | 173/130 | 106/80 | 173/130 | |
| Hydraulisk fläktdrift stängd mitt | Standard | Standard | Standard | Standard | Standard | Standard | |
| Hydraulisk fläktdrift med öppet centrum och injusteringsventil | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Hydraulisk fläktdrivningseffekt utöver lastavkänning | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Oljepåfyllning hydr. fläkt (l/min) | 30 | 30 | 40 | 40 | 44 | 44 | |
| ELDOS eldriven doserare (nr) | 1 | 1 | 2 | 2 | 2 | 2 | |
| Mätenheter i förhållande till antalet fördelningshuvuden | 1 | 1 | 2 | 2 | 2 | 2 | |
| e-com elektronisk (Tellus) | Standard | Standard | Standard | Standard | Standard | Standard | |
| Arbetsbrytare för doseringsenhet (start/stopp) på topplänk för äldre traktorer | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Styrning av mätanordning | Standard | Standard | Standard | Standard | Standard | Standard | |
| Justering av utsädesmängd | Standard | Standard | Standard | Standard | Standard | Standard | |
| Utsädesmängd (min-max.) - kg/ha* | 1-400 | 1-400 | 2-600 | 2-600 | 2 x 1-400 | 2 x 1-400 | |
| Ø 100 mm distributionssystem | Standard | Standard | Standard | Standard | Standard | Standard | |
| Ø 135 mm distributionssystem | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Radar hastighetssignal | Standard | Standard | Standard | Standard | Standard | Standard | |
| Kalibreringsuppsättning | Standard | Standard | Standard | Standard | Standard | Standard | |
| Snabb tömningsränna | Standard | Standard | Standard | Standard | Standard | Standard | |
| Sensor för låg Utjämning | Standard (1) | Standard (1) | Standard (2) | Standard (2) | Standard (2) | Standard (2) | |
| Viktcellsystem | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Plattform | Standard | Standard | Standard | Standard | Standard | Standard | |
| Belysningsutrustning | Standard | Standard | Standard | Standard | Standard | Standard | |
| Arbetsbelysning | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Kamerasystem | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Arbetsbredd såbillsbalk (m) | Fasta och Fällbara versioner (3 - 6 m) med CX-II-strängläggare | Fasta och Fällbara versioner (3 - 6 m) med CX-II-strängläggare | Fällbar: 5,0 m; 6,0 m med CX-II-såbill | Fällbar: 5,0 m; 6,0 m med CX-II-såll | Fasta och Fällbara versioner (3 - 6 m) med CX-II dubbelgångsskär | Fasta och fällbara versioner (3 - 6 m) med CX-II dubbelgångsskär | |
| Antal rader med precisionssåmaskiner | 4-8 | 4-8 | 12-16 | 12-16 | 12-16** | 12-16** | |
| Hydr. spolventiler 1 sa + trycklös retur för fläktdrift | Standard | Standard | Standard | Standard | Standard | Standard | |
| Hydr. spolventiler 1 sa + trycklös retur för fläktdrift och Tillval komfort Tiltpackare | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval | |
| Ytterligare hydr. spolventiler 1 da för tillval grundläggande lyft av Tiltpackare | Tillval | Tillval | Tillval | Tillval | Tillval | Tillval |
* med 15 km/h arbetshastighet
** endast om den delande trattplattan tas bort
Teknisk specifikation
Teknisk specifikation
Ladda ner broschyrenModel |
f-drill compact* |
f-drill maxi* |
f-drill compact duo** |
f-drill maxi duo** |
f-drill maxi plus*** |
Machine type |
modular mounted |
modular mounted |
modular mounted |
modular mounted |
modular mounted |
Hopper capacity (l) |
1,600 |
2,200 |
1,600 |
2,200 |
2,200 (60x40) |
Machine width (m) |
2.75 |
2.75 |
2.75 |
2.75 |
2.75 |
No. of ELDOS metering device |
1 |
1 |
2 |
2 |
2 |
Weight base machine (kg) |
658 |
678 |
732 |
752 |
767 |
Weight optional front packer (kg) |
361 |
361 |
361 |
361 |
361 |
Ballasting weights 100 - 600 kg (steps 2 x 50kg) |
Option |
Option |
Option |
Option |
Option |
Min. power requirement (HP/Kw) |
106/80 |
173/130 |
106/80 |
173/130 |
173/130 |
* Standard model: for the application of one type of seeds or fertiliser.
** The duo model: for higher application rates of one type of seeds or fertiliser.
*** The plus model: for two types of material.
* med 15 km/h arbetshastighet
** endast om den delande trattplattan tas bort
